Schneider Electric

BMXXBP0600H

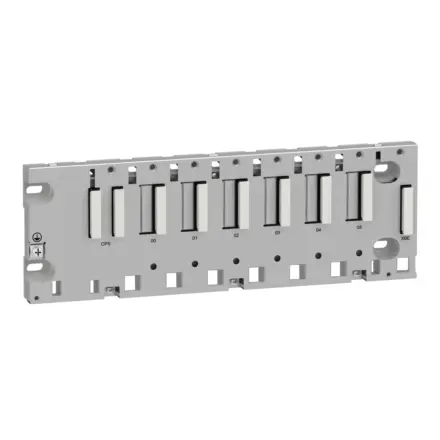

BMXXBP0600H Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for BMXXBP0600H Schneider Electric

BMXXBP0600H Schneider Electric - ruggedized rack M340 - 6 slots - panel, plate or DIN rail mounting

Extended Description for BMXXBP0600H Schneider Electric

BMXXBP0600H Schneider Electric - This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC).,This Ethernet backplane rack is an accessory of M340 processor.,This X-bus backplane provides 6 bus X slots.,This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C.,It is an Ethernet backplane rack with a power of 1.5W. It is furnished with 1 connector (XBE) expansion module for electrical connection.,It is an IP20 rated product.,It weighs 0.79kg.,It is suitable for severe environments, medium to large process applications.,This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply and BMXP34 processor.,Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£127.85 Exc. VAT
£153.42 Inc. VAT

Main

range of product Modicon X80
product or component type Ruggedized backplane
Product specific application For severe environments

Complementary

Number of slots 6 bus X
Product compatibility BMXP34 processor,BMXCPS power supply,I/O module,Specific application module
Power consumption in W 1.68 W
Electrical connection 1 connector (XBE) expansion module
Fixing mode By 4 M4/M5/M6 screws, mounting on panel,By 4 M4/M5/M6 screws, mounting on mounting plate,By clips, mounting on 35 mm symmetrical DIN rail
Height 103.7 mm
Width 307.6 mm
Depth 19 mm
net weight 0.79 kg

Environment

IP degree of protection IP20
Ambient air temperature for operation -25…70 °C
Relative humidity 10…95 % without condensation
Protective treatment Conformal coating
Directives 2014/35/EU - low voltage directive,2014/30/EU - electromagnetic compatibility,2014/34/EU - ATEX directive
Product certifications CE,UL,CSA,RCM,EAC,UKCA,Merchant Navy,ATEX zone 2/22,IECEx zone 2/22
Standards EN/IEC 61131-2,EN/IEC 61010-2-201,UL 61010-2-201,CSA C22.2 No 61010-2-201,IACS E10,EN/IEC 61000-6-5, interface type 1 and type 2,EN/IEC 61850-3, location G,EN/IEC 60079-0
Environmental characteristic Gas resistant class Gx conforming to ISA S71.04,Gas resistant class 3C4 conforming to IEC 60721-3-3,Dust resistant class 3S4 conforming to IEC 60721-3-3,Sand resistant class 3S4 conforming to IEC 60721-3-3,Salt resistant level 2 conforming to IEC 68252,Mold growth resistant class 3B2 conforming to IEC 60721-3-3,Fungal spore resistant class 3B2 conforming to IEC 60721-3-3,Hazardous location class I division 2

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.7 cm
Package 1 Width 15.1 cm
Package 1 Length 39.0 cm
Package 1 Weight 844.0 g
Unit Type of Package 2 S04
Number of Units in Package 2 9
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 8.296 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
