BRS368H130AAA

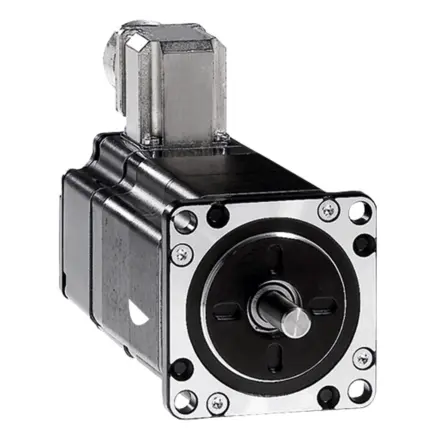

BRS368H130AAA Schneider Electric - 3-phase stepper motor - 1.70 Nm - shaft Ã8 mm - L=79 mm - without brake - wire

BRS368H130AAA Schneider Electric - This product is part of the Lexium SD3 range, an offer of stepper motors for motion control.,The 6-pole stepper motor with 8mm smooth shaft, centering collar of 38mm, without holding brake and second shaft end.,It is a 3-phase stepper motor with a rated current of 5.8A, a mechanical speed of 3000RPM and a supply voltage of 34V DC, 48V DC.,It is furnished with flying leads for electrical connection.,The shaft dimensions are 8mm (diameter) x 21mm (length). It offers service life of about 20,000 hours (bearing). It is an IP41 and IP56 rated product.,Its dimensions are 79mm (length) and the centering collar dimensions are 1.6mm (depth) x 38mm (diameter) with 66.6mm mounting hole. It weighs 2kg.,It is suitable for printing, paper, packaging, handling, labelling, textile industry, food and beverage applications.,It meets EN 50347 and IEC 60072-1 standards.,This stepper motor is compatible with Lexium SD3 motor drives.,It supports 57.2mm flange mount with a natural convection cooling system. It has 4 mounting holes with 5.2mm diameter.,The SD3 is a universally applicable stepper motor drive. The package is ready for operation within a very short period of time.,Lexium SD3, three-phase range up to 19.7Nm with high accuracy and high torque at low rotation speeds.
