Schneider Electric

CA3KN22ZD3

CA3KN22ZD3 Schneider Electric

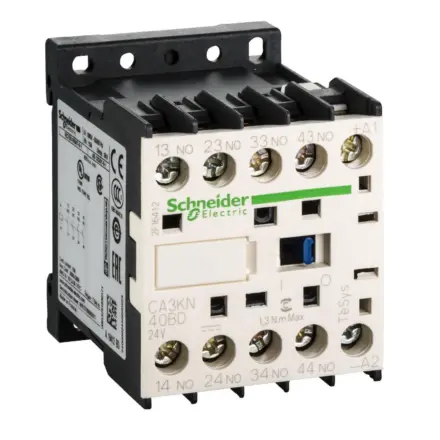

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for CA3KN22ZD3 Schneider Electric

CA3KN22ZD3 Schneider Electric - TeSys K control relay , 2 NO + 2 NC , <= 690 V , 20 V DC standard coil

Extended Description for CA3KN22ZD3 Schneider Electric

CA3KN22ZD3 Schneider Electric - TeSys K control relay, 4 contacts (2NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13.,It provides a 20V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals.,For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability.,Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw.,Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Main

Range TeSys
Product name TeSys CAK
product or component type Control relay
Device short name CA3K
Contactor application Control circuit
Utilisation category DC-13,AC-15
Pole contact composition 2 NO + 2 NC
[Ue] rated operational voltage <= 690 V <= 400 Hz
Control circuit type DC standard
[Uc] control circuit voltage 20 V DC

Complementary

Coil technology Built-in bidirectional peak limiting diode suppressor
[Ith] conventional free air thermal current 10 A (at 50 °C)
Irms rated making capacity 110 A conforming to IEC 60947
Associated fuse rating 10 A gG conforming to IEC 60947,10 A gG conforming to VDE 0660
[Ui] rated insulation voltage 690 V conforming to IEC 60947,750 V conforming to VDE 0110 group C,690 V conforming to BS 5424,600 V conforming to CSA C22.2 No 14
mounting support Plate,Rail
Connections - terminals Screw clamp terminals 1 cable(s) 1.5…4 mm²solid,Screw clamp terminals 2 cable(s) 1.5…4 mm²solid,Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible with cable end,Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end,Screw clamp terminals 1 cable(s) 0.34…1.5 mm²flexible with cable end,Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible without cable end
Tightening torque 1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm,1.3 N.m - on screw clamp terminals - with screwdriver Philips No 26 mm
Control circuit voltage limits Operational: 0.8...1.15 Uc (at <50 °C),Drop-out: 0.1...0.75 Uc (at <50 °C)
Operating time 10 ms coil de-energisation and NO opening,30...40 ms coil energisation and NO closing,15 ms coil de-energisation and NC closing,25...35 ms coil energisation and NC opening
Mechanical durability 20 Mcycles
Maximum operating rate 10000 cyc/h
Immunity to microbreaks 2 ms
Inrush power in W 3 W (at 20 °C)
Hold-in power consumption in W 3 W at 20 °C
Heat dissipation 3 W
Minimum switching voltage 17 V
Minimum switching current 5 mA
Non overlap distance 0.5 mm
Insulation resistance > 10 MOhm
Height 58 mm
Width 45 mm
Depth 57 mm
net weight 0.225 kg

Environment

Standards EN/IEC 60947-4-1,GB/T 14048.4,UL 60947-4-1,CSA C22.2 No 60947-4-1,JIS C8201-4-1
Product certifications CB Scheme,CCC,UL,CSA,EAC,CE,UKCA
IP degree of protection IP2X
Protective treatment TC conforming to IEC 60068
Ambient air temperature for operation -25…50 °C
Ambient air temperature for storage -50…80 °C
Operating altitude 2000 m without derating
Flame retardance V1 conforming to UL 94,Requirement 2 conforming to NF F 16-101,Requirement 2 conforming to NF F 16-102
Mechanical robustness Vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6,Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6,Shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27,Shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.8 cm
Package 1 Width 6.2 cm
Package 1 Length 5.9 cm
Package 1 Weight 224 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet
