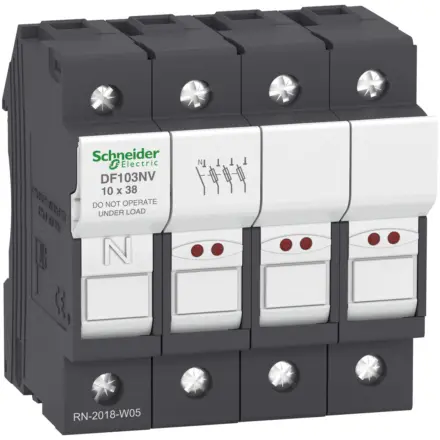

DF103NV Schneider Electric - Fuse carrier TeSys DF, 3P+N 32A, fuse size 10x38 mm, blown fuse indicator

Extended Description for DF103NV Schneider Electric

DF103NV Schneider Electric - TeSys DF modular fuse carrier, 4 poles (3P+N), for protection of control circuits up to 32A/690V.,To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V.,It provides a Neutral pole fitted with a locked tubular link, blown fuse indication by LED.,Compact (70mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory.,Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately).,Sold in lots of 3 units.,Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£12.88 Exc. VAT
£15.46 Inc. VAT

Main

Range TeSys
Product name TeSys DF
product or component type Fuse carrier
Device short name DF10
Device composition tubular link for locked in Neutral pole
Product compatibility DF2CA fuse cartridge,DF2CN fuse cartridge
Poles description 3P + N
Fuse size 10 x 38 mm
Fuse type , gG,, aM
Control type Toggle padlockable
Local signalling Blown fuse indication
Utilisation category AC-20B conforming to IEC 60947-3,DC-20B conforming to IEC 60947-3
[Ue] rated operational voltage 690 V AC,690 V DC
[Ie] rated operational current 32 A at 400 V AC
[Ith] conventional free air thermal current 32 A 20 °C
[Ui] rated insulation voltage 690 V AC
[Uimp] rated impulse withstand voltage 6 kV
Overvoltage category III
Short-circuit withstand 120 kA 400 V conforming to IEC 60947-3,120 kA 500 V conforming to IEC 60947-3
Power dissipation in W 3 W maximum power dissipation by fuse

Complementary

Standards EN/IEC 60947-3,EN/IEC 60269-2,UL 4248-1,CSA C22.2 No 4248-1,EN 45545-2: R22 HL2
Product certifications IEC,UL recognized,CSA,CCC,EAC,DNV-GL
mounting support 35 mm symmetrical DIN rail
Mounting position Vertical (tolerance: +/- 23°)
Connections - terminals Screw clamp terminals 1 cable(s) 1…16 mm²rigid,Screw clamp terminals 2 cable(s) 1…6 mm²rigid,Screw clamp terminals 1 cable(s) 1…16 mm²flexible with or without,Screw clamp terminals 2 cable(s) 1…6 mm²flexible with or without
Tightening torque 2.2 N.m - with screwdriver PZ2,2.2 N.m - with screwdriver flat Ø 5.5 mm
Height 79.5 mm
Width 70 mm
Depth 61 mm
net weight 0.171 kg
Quantity per set Set of 3

Environment

Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -40…70 °C with derating above 20°C
Operating altitude 0...2000 m
IP degree of protection IP20
Pollution degree 3
Fire resistance 960 °C conforming to IEC 60695-2-1
compatibility code DF10

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.2 cm
Package 1 Width 7.1 cm
Package 1 Length 8.0 cm
Package 1 Weight 182.0 g
Unit Type of Package 2 BB1
Number of Units in Package 2 3
Package 2 Height 6.8 cm
Package 2 Width 8.5 cm
Package 2 Length 22.2 cm
Package 2 Weight 585.0 g
Unit Type of Package 3 S03
Number of Units in Package 3 48
Package 3 Height 30.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 9.839 kg

Contractual warranty

Warranty 18 months
