Schneider Electric

E3SUPS10K3I

E3SUPS10K3I Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for E3SUPS10K3I Schneider Electric

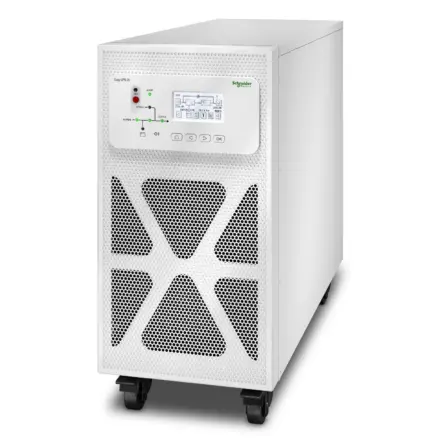

E3SUPS10K3I Schneider Electric - Easy UPS 3S 10 kVA 400 V 3:1 UPS for external batteries

Extended Description for E3SUPS10K3I Schneider Electric

E3SUPS10K3I Schneider Electric - High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room.,This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS.,Includes dust filter and conformance-coated boards for harsh environments.,This UPS is supplied without batteries, so you can easily customize the battery solution.,Ideal for small and medium businesses.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£3,723.40 Exc. VAT
£4,468.08 Inc. VAT

Overview

Presentation High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution.
Lead time Usually Ships within 6 Weeks

Main

Main Input Voltage 400 V 3 phases
product or component type Uninterruptible power supply (UPS)
Other Input Voltage 380 V,415 V
Main Output Voltage 230 V
Other Output Voltage 220 V,240 V
Rated power in W 10 kW
Rated power in VA 10 kVA
Provided equipment Dust filter,Installation guide
range of product Easy UPS 3S

Batteries & Runtime

Efficiency View Efficiency Graph
Battery type Internal modular battery
Maximum short-circuit current 10 kA
Number of battery filled slots 0
Number of battery free slots 0

Physical

Colour White (RAL 9003)
Height 53 cm
Width 25 cm
Depth 70 cm
net weight 36 kg
USB compatible Yes

Input

Maximum input current 18 A
Input harmonic distortion Less than 4 % for full load
Input Power Factor at Full Load 0.99
Input voltage limits 304...477 V
Network frequency 45...65 Hz

Output

Maximum configurable power in VA 10 kVA
Maximum configurable power in W 10 kW
Output frequency 50 Hz sync to mains ,60 Hz sync to mains
Harmonic distortion Less than 3 %
Output overload operation 10 minutes at 125% and 60 seconds at 150%
UPS type Double conversion online
Crest factor 3 : 1

Conformance

Product certifications CE,EAC,RCM

Environmental

Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...3281 ft
Ambient air temperature for storage -15…40 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.0000000000…15240.0000000000 m
Acoustic level 60 dBA
Heat dissipation 516 W
IP degree of protection IP20

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 77.2 cm
Package 1 Width 85.7 cm
Package 1 Length 40 cm
Package 1 Weight 50 kg

Contractual warranty

Warranty 1 year on-site repair or replace with factory authorized Start-Up

Documentation

Product Datasheet

User guide

Instruction sheet

Brochure

Environmental disclosure
