Schneider Electric

EVP1HSM41

EVP1HSM41 Schneider Electric

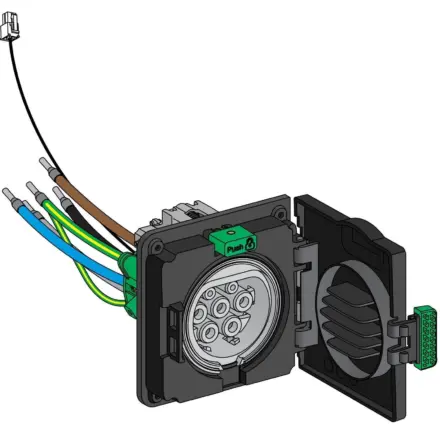

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for EVP1HSM41 Schneider Electric

EVP1HSM41 Schneider Electric - T2S socket-outlet subassembly 1-Ph IEC - Wallbox spare part

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£384.20 Exc. VAT
£461.04 Inc. VAT

Main

Range EVlink
product or component type Socket-outlet
Socket-outlet type T2 with shutter
Poles description 1P + N
[Us] rated supply voltage 220...240 V AC 50/60 Hz
Maximum supply current 32 A
Earthing system Compatible TN,Compatible TT,Compatible IT with additional isolation transformer on the power supply
Nominal output power 7.4 W 32 A
Range compatibility EVlink EVlink Wallbox EVH2 charging station

Complementary

Material Plastic
Product certifications CE
Height 110 mm
Width 110 mm
Depth 90 mm

Environment

IP degree of protection IP54 conforming to IEC 60529
IK degree of protection IK10 conforming to IEC 62262
Ambient air temperature for operation -30…50 °C
Ambient air temperature for storage -40…80 °C
Relative humidity 5…95 %

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.000 cm
Package 1 Width 15.000 cm
Package 1 Length 40.000 cm
Package 1 Weight 736.000 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet
