Schneider Electric

FCE200521B200

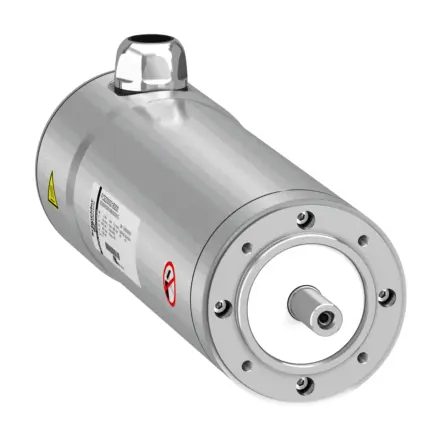

FCE200521B200 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for FCE200521B200 Schneider Electric

FCE200521B200 Schneider Electric - servo motor SHS 071 1,55Nm,brake,6k RPM

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£7,263.08 Exc. VAT
£8,715.70 Inc. VAT

Main

Range compatibility PacDrive 3
Device short name SHS
product or component type Servo motor
Encoder type Absolute multiturn SinCos Hiperface

Complementary

Maximum mechanical speed 8000 rpm
[Us] rated supply voltage 400 V
Network number of phases Three phase
Continuous stall current 3.6 A
Continuous stall torque 2.5 N.m for LXM62,2.5 N.m for LXM52
Continuous power 970 W
Peak stall torque 10.3 N.m for LXM62 at 2350 mA, 400 V, 3 phases,10.3 N.m for LXM52 at 2350 mA, 400 V, 3 phases
Nominal output power 970 W for LXM62,970 W for LXM52
Nominal torque 1.55 N.m for LXM62 at 400 V three phase,1.55 N.m for LXM52 at 400 V three phase
Nominal speed 6000 rpm for LXM62,6000 rpm for LXM52
Maximum current Irms 15.2 A for LXM62,15.2 A for LXM52
Maximum permanent current 2.3 A
Product compatibility LXM62 at 400 V, three phase,LXM52 at 400 V, three phase
Switching frequency 8 kHz
Shaft end Smooth shaft
Shaft diameter 14 mm
Shaft length 30 mm
Key width 5 mm
Speed feedback resolution 128 periods
Holding brake Without
Holding torque 2.5 N.m
mounting support Flange
Motor flange size 71 mm
Electrical connection Cable with stripped end
Back emf constant 0.7 V/krpm at 20 °C
Number of motor poles 49
Rotor inertia 0.81 kg.cm²
Stator resistance 2.7 Ohm
Stator inductance 13 mH
Maximum radial force Fr 400 N at 6000 rpm
Maximum axial force Fa 80 N
Number of motor stacks 3
Type of cooling Natural convection
Length 284 mm
Centring collar diameter 60 mm
Centring collar depth 2.5 mm
Number of mounting holes 4
Mounting holes diameter 6 mm
Circle diameter of the mounting holes 71 mm
net weight 7.2 kg

Environment

IP degree of protection IP69K motor: conforming to IEC 60034-5,IP67 motor: conforming to IEC 60034-5

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 25.0 cm
Package 1 Width 18.6 cm
Package 1 Length 55.0 cm
Package 1 Weight 4.92 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
