Schneider Electric

GK1ET

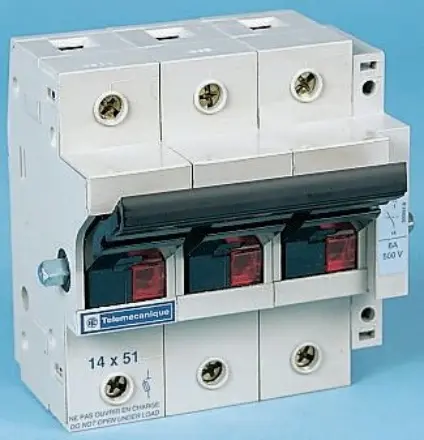

GK1ET Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for GK1ET Schneider Electric

GK1ET Schneider Electric - TeSys fuse-disconnector - 4P - 50A - fuse size 14 x 51 mm

Extended Description for GK1ET Schneider Electric

GK1ET Schneider Electric - TeSys GK fuse carrier block, 4 poles (4P), for protection of motors and transformers up to 50A/690V.,To be used with 14x51mm fuse links up to 50A.,It provides a front handle, 2NO early break auxiliary contacts.,It can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals.,Fuse links (14x51mm aM, gG type) and add-on auxiliaries (tubular links for Neutral, side handle operators, padlocking devices) are available (to be ordered separately).,Multi standards certified (IEC, EN, Marine), it conforms to RoHS/REACh regulation.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£156.02 Exc. VAT
£187.22 Inc. VAT

Main

Range TeSys
Product name TeSys GK1
product or component type Fuse-disconnector
Device short name GK1 E
Poles description 3P + N

Complementary

mounting support Rail
Mounting position Vertical (tolerance: +/- 23°)
Control type Toggle
[Ue] rated operational voltage Power circuit: 690 V AC,Signalling circuit: 500 V AC,Signalling circuit: 440 V DC
[Ie] rated operational current 50 A for power circuit,6 A for signalling circuit
Contacts type and composition 2 NO early-break
Fuse size 14 x 51 mm
Fuse type AM,GG
Connections - terminals Power circuit: connector 1 cable(s) 2.5…25 mm²solid,Power circuit: connector 1 cable(s) 2.5…25 mm²flexible without cable end,Power circuit: connector 1 cable(s) 2.5…16 mm²flexible with cable end
Tightening torque 2 N.m power circuit: on connector

Environment

Standards IEC 60947-3
IP degree of protection IP20
Protective treatment TC
Ambient air temperature for operation -50…70 °C
Height 97 mm
Width 123 mm
Depth 89.5 mm
net weight 0.61 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 10.0 cm
Package 1 Width 10.5 cm
Package 1 Length 15.0 cm
Package 1 Weight 703.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 10
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.5 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
