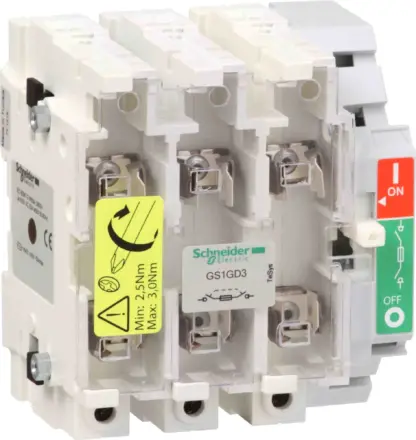

GS1GD3 Schneider Electric - TeSys GS - switch-disconnector fuse - 3 P - 63 A - DIN 000

Extended Description for GS1GD3 Schneider Electric

GS1GD3 Schneider Electric - TeSys GS fuse switch-disconnector, 3 poles (3P), 63A/750V, to be used with DIN blade fuse links size 000 up to 63A, for motor applications up to 30kW@400V AC-23.,To be equipped with a direct operating handle GS1AH01 (to be ordered separately), for using an external operating handle select a fuse switch-disconnector type GS2G.,It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@400V.,Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately).,Type aM and gG size 000 blade fuse links without strickers DF2FGA, DF2FGN are available (to be ordered separately).,Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£83.27 Exc. VAT
£99.92 Inc. VAT

Main

Range TeSys
Product name TeSys GS
Device short name GS1G
product or component type Switch-disconnector-fuse
device application Protection
Poles description 3P
Protected poles description 3t
Contacts type and composition 3 NO
[Ith] conventional free air thermal current 63 A (at 40 °C)
[Ie] rated operational current 40 A at 440 V 2 poles in series per phase DC-23A,40 A at 440 V 2 poles in series per phase DC-23B,63 A at 400 V AC-23A,63 A at 400 V AC-23B,63 A at 500 V AC-23A,63 A at 500 V AC-23B,63 A at 690 V AC-23A,63 A at 690 V AC-23B
Fuse type DIN
Fuse size 000
Network type AC,DC
Network frequency 50/60 Hz

Complementary

Type of operating handle Direct right side
mounting support Plate
[Ui] rated insulation voltage 750 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
Rated operational power in W 33 kW at 400 V,45 kW at 500 V,55 kW at 690 V
Breaking capacity 6 W
Making capacity 630 A at 400 V AC-23B
Breaking capacity 500 A at 400 V (AC-23B)
Short-circuit withstand 10.6 kA
Mechanical durability 10000 cycles
Electrical durability 1500 cycles AC-23A,1500 cycles AC-23B,300 cycles DC-23A,300 cycles DC-23B
Connections - terminals Power circuit: lugs-ring terminals10…25 mm² flexible
[Icm] rated short-circuit making capacity 100 kA at 400 V with protection by gG fuses
Tightening torque Power circuit: 3.2 N.m - on lugs-ring terminals

Environment

Standards IEC 60947-3
Product certifications CE
Protective treatment TH
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…80 °C
Fire resistance 850 °C fuse cover conforming to IEC 60695-2-1,960 °C body conforming to IEC 60695-2-1
Height 118 mm
Width 133 mm
Depth 116.5 mm
net weight 1 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14.000 cm
Package 1 Width 19.700 cm
Package 1 Length 12.800 cm
Package 1 Weight 1.178 kg
Unit Type of Package 2 S03
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.644 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
