Schneider Electric

GS1LLD3

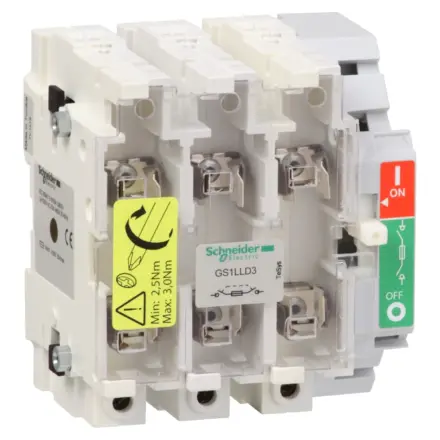

GS1LLD3 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for GS1LLD3 Schneider Electric

GS1LLD3 Schneider Electric - TeSys GS - switch-disconnector fuse - 3 P - 160 A - DIN 00

Extended Description for GS1LLD3 Schneider Electric

GS1LLD3 Schneider Electric - TeSys GS fuse switch-disconnector, 3 poles (3P), 160A/750V, to be used with DIN blade fuse links size 00 up to 160A, for motor applications up to 80kW@400V AC-23.,To be equipped with a direct operating handle GS1AH02 (to be ordered separately), for using an external operating handle select a fuse switch-disconnector type GS2LL.,Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP33 (to be ordered separately), it provides high short circuit current rating 100kA@400V.,Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately).,Type aM and gG size 00 blade fuse links without strickers DF2GA, DF2GN are available (to be ordered separately).,Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£128.08 Exc. VAT
£153.70 Inc. VAT

Main

Range TeSys
Product name TeSys GS
Device short name GS1 L
product or component type Switch-disconnector-fuse
device application Protection
Poles description 3P
Protected poles description 3t
Contacts type and composition 3 NO
[Ith] conventional free air thermal current 160 A (at 40 °C)
[Ie] rated operational current 125 A at 440 V 2 poles in series per phase DC-23A,125 A at 440 V 2 poles in series per phase DC-23B,125 A at 690 V with terminal cover AC-23A,125 A at 690 V with terminal cover AC-23B,160 A at 400 V AC-23A,160 A at 400 V AC-23B,160 A at 500 V AC-23A,160 A at 500 V AC-23B
Fuse type DIN
Fuse size 00
Network type AC,DC
Network frequency 50/60 Hz

Complementary

Type of operating handle Direct right side
mounting support Plate
[Ui] rated insulation voltage 750 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
Rated operational power in W 90 kW at 400 V,110 kW at 500 V,110 kW at 690 V
Breaking capacity 12 W
Making capacity 1600 A at 400 V AC-23B
Breaking capacity 1280 A at 400 V (AC-23B)
Short-circuit withstand 22.7 kA
Mechanical durability 10000 cycles
Electrical durability 1000 cycles AC-23A,1000 cycles AC-23B,200 cycles DC-23A,200 cycles DC-23B
Connections - terminals Power circuit: bars,Power circuit: lugs-ring terminals50…95 mm² flexible
[Icm] rated short-circuit making capacity 100 kA at 400 V with protection by gG fuses
Tightening torque Power circuit: 12 N.m - on bars,Power circuit: 12 N.m - on lugs-ring terminals

Environment

Standards IEC 60947-3
Product certifications CE
Protective treatment TH
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…80 °C
Fire resistance 850 °C fuse cover conforming to IEC 60695-2-1,960 °C body conforming to IEC 60695-2-1
Height 162 mm
Width 150 mm
Depth 126.5 mm
net weight 1.8 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 16.0 cm
Package 1 Width 19.0 cm
Package 1 Length 23.5 cm
Package 1 Weight 1.721 kg
Unit Type of Package 2 S06
Number of Units in Package 2 13
Package 2 Height 75.0 cm
Package 2 Width 60.0 cm
Package 2 Length 80.0 cm
Package 2 Weight 35.373 kg

Contractual warranty

Warranty 18 months
