Description for GS2FG3 Schneider Electric

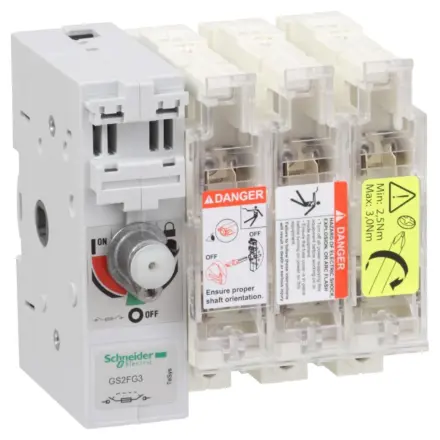

GS2FG3 Schneider Electric - TeSys GS - switch-disconnector-fuse - 3 P - 50A - NFC 14 x 51 mm

Extended Description for GS2FG3 Schneider Electric

GS2FG3 Schneider Electric - TeSys GS fuse switch-disconnector, 3 poles (3P), 50A/750V, to be used with NFC cylindrical fuse links size 14x51mm up to 50A, for motor applications up to 25kW@400V AC-23.,To be equipped with an external left-hand side mounting operating handle GS2AH (several models available).,It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@400V.,Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately).,Type aM and gG 14x51mm cylindrical fuse links without strickers DF2EA, DF2EN and with strickers DF3EA, DF3EN are available (to be ordered separately).,Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£80.65 Exc. VAT
£96.78 Inc. VAT

Main

Range TeSys
Product name TeSys GS
Device short name GS2F
product or component type Switch-disconnector-fuse
Poles description 3P
Protected poles description 3t
Contacts type and composition 3 NO
[Ith] conventional free air thermal current 50 A (at 40 °C)
[Ie] rated operational current 40 A at 440 V 2 poles in series per phase DC-23A,40 A at 440 V 2 poles in series per phase DC-23B,50 A at 400 V AC-23A,50 A at 400 V AC-23B,50 A at 500 V AC-23A,50 A at 500 V AC-23B,50 A at 690 V AC-23A,50 A at 690 V AC-23B
Fuse type NFC
Fuse size 14 x 51 mm
Network type DC,AC
Network frequency 50/60 Hz

Complementary

Type of operating handle External left side
mounting support Plate
[Ui] rated insulation voltage 750 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
Rated operational power in W 25 kW at 400 V,45 kW at 690 V,33 kW at 500 V
Making capacity 500 A at 400 V AC-23B
Breaking capacity 400 A at 400 V (AC-23B)
Short-circuit withstand 10.6 kA
Mechanical durability 10000 cycles
Electrical durability 1500 cycles AC-23A,1500 cycles DC-23A,300 cycles AC-23B,300 cycles DC-23B
Connections - terminals Power circuit: lugs-ring terminals6…25 mm²
[Icm] rated short-circuit making capacity 100 kA at 400 V with protection by gG fuses
Tightening torque Power circuit: 3.2 N.m

Environment

Standards IEC 60947-3
Product certifications CE
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…80 °C
Fire resistance 850 °C fuse cover conforming to IEC 60695-2-1,960 °C body conforming to IEC 60695-2-1
Height 118 mm
Width 121 mm
Depth 87 mm
net weight 0.8 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.000 cm
Package 1 Width 13.000 cm
Package 1 Length 18.000 cm
Package 1 Weight 1.030 kg
Unit Type of Package 2 S03
Number of Units in Package 2 10
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 10.973 kg

Contractual warranty

Warranty 18 months
