Schneider Electric

GS2GG3

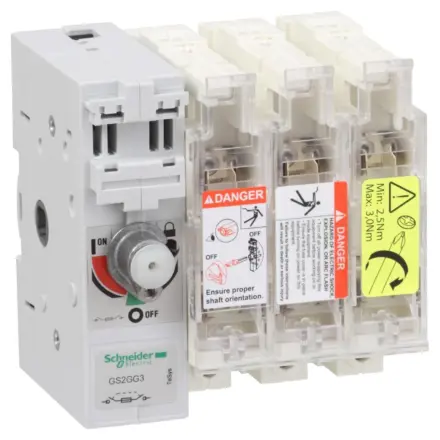

GS2GG3 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for GS2GG3 Schneider Electric

GS2GG3 Schneider Electric - TeSys GS - switch-disconnector-fuse - 3 P - 63A - DIN 00C

Extended Description for GS2GG3 Schneider Electric

GS2GG3 Schneider Electric - TeSys GS fuse switch-disconnector, 3 poles (3P), 63A/750V, to be used with DIN blade fuse links size 000 up to 63A, for motor applications up to 30kW@400V AC-23.,To be equipped with an external left-hand side mounting operating handle GS2AH (several models available).,It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@400V.,Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately).,Type aM and gG size 000 blade fuse links without strickers DF2FGA, DF2FGN are available (to be ordered separately).,Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£110.49 Exc. VAT
£132.59 Inc. VAT

Main

Range TeSys
Product name TeSys GS
Device short name GS2G
product or component type Switch-disconnector-fuse
Poles description 3P
Protected poles description 3t
Contacts type and composition 3 NO
[Ith] conventional free air thermal current 63 A (at 40 °C)
[Ie] rated operational current 40 A at 440 V 2 poles in series per phase DC-23A,40 A at 440 V 2 poles in series per phase DC-23B,63 A at 400 V AC-23A,63 A at 400 V AC-23B,63 A at 500 V AC-23A,63 A at 500 V AC-23B,63 A at 690 V AC-23A,63 A at 690 V AC-23B
Fuse type DIN
Fuse size 000
Network type DC,AC
Network frequency 50/60 Hz

Complementary

Type of operating handle External left side
mounting support Plate
[Ui] rated insulation voltage 750 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
Rated operational power in W 30 kW at 400 V,40 kW at 500 V,55 kW at 690 V
Making capacity 630 A at 400 V AC-23B
Breaking capacity 500 A at 400 V (AC-23B)
Short-circuit withstand 10.6 kA
Mechanical durability 10000 cycles
Electrical durability 1500 cycles AC-23A,1500 cycles DC-23A,300 cycles AC-23B,300 cycles DC-23B
Connections - terminals Power circuit: lugs-ring terminals10…25 mm²
[Icm] rated short-circuit making capacity 100 kA at 400 V with protection by gG fuses
Tightening torque Power circuit: 3.2 N.m

Environment

Standards IEC 60947-3
Product certifications CE
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…80 °C
Fire resistance 850 °C fuse cover conforming to IEC 60695-2-1,960 °C body conforming to IEC 60695-2-1
Height 118 mm
Width 136 mm
Depth 116.5 mm
net weight 1 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14 cm
Package 1 Width 12.5 cm
Package 1 Length 19.7 cm
Package 1 Weight 1.27 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
