Schneider Electric

GS2JG3

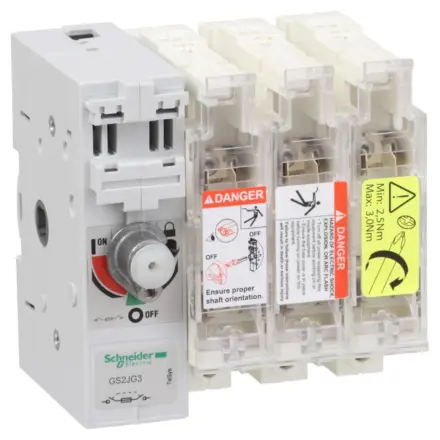

GS2JG3 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for GS2JG3 Schneider Electric

GS2JG3 Schneider Electric - TeSys GS - switch-disconnector-fuse - 3 P - 100A - NFC 22 x 58 mm

Extended Description for GS2JG3 Schneider Electric

GS2JG3 Schneider Electric - TeSys GS fuse switch-disconnector, 3 poles (3P), 100A/750V, to be used with NFC cylindrical fuse links size 22x58mm up to 100A, for motor applications up to 51kW@400V AC-23.,To be equipped with an external left-hand side mounting operating handle GS2AH (several models available).,Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP33 (to be ordered separately), it provides high short circuit current rating 100kA@400V.,Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately).,Type aM and gG 22x58mm cylindrical fuse links without strickers DF2FA, DF2FN and with strickers DF3FA, DF3N are available (to be ordered separately).,Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£118.93 Exc. VAT
£142.72 Inc. VAT

Main

Range TeSys
Product name TeSys GS
Device short name GS2J
product or component type Switch-disconnector-fuse
Poles description 3P
Protected poles description 3t
Contacts type and composition 3 NO
[Ith] conventional free air thermal current 100 A (at 40 °C)
[Ie] rated operational current 100 A at 440 V 2 poles in series per phase DC-23A,100 A at 440 V 2 poles in series per phase DC-23B,100 A at 690 V poles not juxtaposed AC-23A,100 A at 690 V poles not juxtaposed AC-23B,100 A at 400 V AC-23A,100 A at 400 V AC-23B,100 A at 500 V AC-23A,100 A at 500 V AC-23B
Fuse type NFC
Fuse size 22 x 58 mm
Network type DC,AC
Network frequency 50/60 Hz

Complementary

Type of operating handle External left side
mounting support Plate
[Ui] rated insulation voltage 750 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
Rated operational power in W 51 kW at 400 V,63 kW at 500 V,90 kW at 690 V
Making capacity 1000 A at 400 V AC-23B
Breaking capacity 800 A at 400 V (AC-23B)
Short-circuit withstand 20 kA
Mechanical durability 10000 cycles
Electrical durability 1500 cycles AC-23A,1500 cycles AC-23B,300 cycles AC-23A,300 cycles AC-23B
Connections - terminals Power circuit: bars20 mm²,Power circuit: lugs-ring terminals25…95 mm²
[Icm] rated short-circuit making capacity 80 kA at 400 V with protection by gG fuses
Tightening torque Power circuit: 12 N.m

Environment

Standards IEC 60947-3
Product certifications CE
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…80 °C
Fire resistance 850 °C fuse cover conforming to IEC 60695-2-1,960 °C body conforming to IEC 60695-2-1
Height 162 mm
Width 148 mm
Depth 116 mm
net weight 1.5 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 20.5 cm
Package 1 Width 21.0 cm
Package 1 Length 23.0 cm
Package 1 Weight 1.847 kg
Unit Type of Package 2 S04
Number of Units in Package 2 6
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 11.778 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
