Schneider Electric

GS2SU3

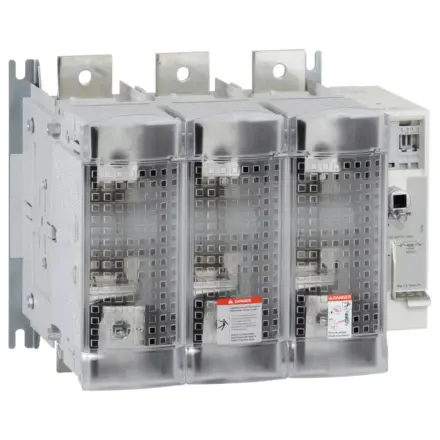

GS2SU3 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for GS2SU3 Schneider Electric

GS2SU3 Schneider Electric - TeSys GS - switch-disconnector-fuse - 3 P - UL 600 A - fuse size J

Extended Description for GS2SU3 Schneider Electric

GS2SU3 Schneider Electric - TeSys GS fuse switch-disconnector, 3 poles (3P), 600A/1000V, to be used with class J fuse links up to 600A, for motor applications up to 355kW@400V AC-23.,To be equipped with an external front side mounting operating handle GS2AH (several models available).,Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP73 (to be ordered separately), it provides high short circuit current rating 200kA@600V.,Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately).,UL/CSA certified, Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1,001.01 Exc. VAT
£1,201.21 Inc. VAT

Main

Range TeSys
Product name TeSys GS
Device short name GS2S
product or component type Switch-disconnector-fuse
Poles description 3P
Protected poles description 3t
Contacts type and composition 3 NO
[Ith] conventional free air thermal current 600 A (at 40 °C)
[Ie] rated operational current 600 A AC-22A,600 A AC-23A
Fuse type UL
Fuse size J
Network type AC,DC
Network frequency 50/60 Hz

Complementary

Type of operating handle External frontal
mounting support Plate
[Uimp] rated impulse withstand voltage 12 kV
Short-circuit withstand 200 kA
Connections - terminals Power circuit: lugs-ring terminals 2 cable(s) 150 mm²,Power circuit: bars100 mm²
Tightening torque Power circuit: 35 N.m

Environment

Standards CSA C22.2 No 4,UL98
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…80 °C
Fire resistance 960 °C body
Height 300 mm
Width 364 mm
Depth 250 mm
net weight 29 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 44.7 cm
Package 1 Width 41.7 cm
Package 1 Length 52.9 cm
Package 1 Weight 29.0 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
