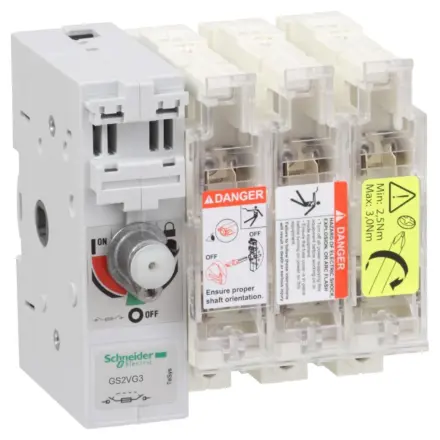

GS2VG3 Schneider Electric - TeSys GS - switch-disconnector-fuse - 3 P - 1250A - DIN 4

Extended Description for GS2VG3 Schneider Electric

GS2VG3 Schneider Electric - TeSys GS fuse switch-disconnector, 3 poles (3P), 1250A/1000V, to be used with DIN blade fuse links size 4 up to 1250A, for motor applications up to 560kW@400V AC-23.,To be equipped with an external left-hand side mounting operating handle GS2AH (several models available).,It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@400V.,Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately).,Type aM and gG size 4 blade fuse links without strickers DF2LA, DF2LN and with strickers DF4LA, DF4LN are available (to be ordered separately).,Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1,180.06 Exc. VAT
£1,416.07 Inc. VAT

Main

Range TeSys
Product name TeSys GS
Device short name GS2V
product or component type Switch-disconnector-fuse
Poles description 3P
Protected poles description 3t
Contacts type and composition 3 NO
[Ith] conventional free air thermal current 1250 A (at 40 °C)
[Ie] rated operational current 1000 A at 440 V 2 poles in series per phase DC-23A,1000 A at 440 V 2 poles in series per phase DC-23B,630 A at 690 V AC-23A,630 A at 690 V AC-23B,1000 A at 440 V AC-23A,1000 A at 440 V AC-23B,800 A at 500 V AC-23A,800 A at 500 V AC-23B
Fuse type DIN
Fuse size 4
Network type AC,DC
Network frequency 50/60 Hz

Complementary

Type of operating handle External left side
mounting support Plate
[Ui] rated insulation voltage 1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 12 kV
Rated operational power in W 400 kW at 690 V,475 kW at 690 V,560 kW at 400 V,560 kW at 500 V
Breaking capacity 110 W
Making capacity 10000 A at 400 V AC-23B
Breaking capacity 8000 A at 400 V (AC-23B)
Short-circuit withstand 90 kA
Mechanical durability 5000 cycles
Electrical durability 100 cycles DC-23A,100 cycles DC-23B,500 cycles AC-23A,500 cycles AC-23B
Connections - terminals Power circuit: bars80 mm²,Power circuit: lugs-ring terminals 4 cable(s) 185 mm²
[Icm] rated short-circuit making capacity 80 kA at 400 V with protection by gG fuses
Tightening torque Power circuit: 44 N.m

Environment

Standards IEC 60947-3
Product certifications CE
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…80 °C
Fire resistance 850 °C fuse cover conforming to IEC 60695-2-1,960 °C body conforming to IEC 60695-2-1
Height 355 mm
Width 442 mm
Depth 289 mm
net weight 25 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 53.0 cm
Package 1 Width 60.0 cm
Package 1 Length 80.0 cm
Package 1 Weight 25.0 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
