Schneider Electric

GV2MP01

GV2MP01 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for GV2MP01 Schneider Electric

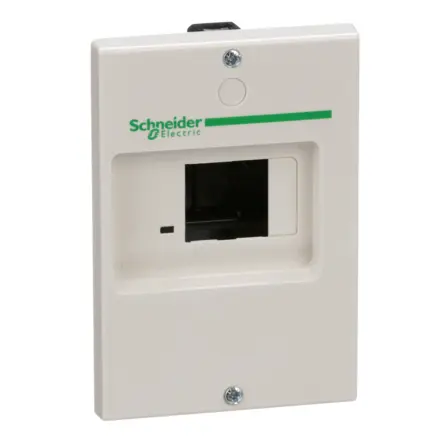

GV2MP01 Schneider Electric - TeSys GV2 - Flush mounting enclosure for TeSys GV2ME - IP41

Extended Description for GV2MP01 Schneider Electric

GV2MP01 Schneider Electric - TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME.,Flush mounting enclosure, sealable cover.,Polycarbonate enclosure, double insulated with protective conductor, IP41 protection front face.,To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately).,Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately).,It conforms to IEC 60947-2 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£5.95 Exc. VAT
£7.14 Inc. VAT

Main

Range TeSys
product or component type Enclosure
Device short name GV2MP
accessory / separate part category Mounting accessory
Product compatibility GV2ME
enclosure type Flush mounting

Complementary

Auxiliary mounting location Left,Right
Height 140 mm
Width 106.5 mm
Depth 83 mm
net weight 0.115 kg

Environment

IP degree of protection IP41 front face
Environmental characteristic Standard environment

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.5 cm
Package 1 Width 10 cm
Package 1 Length 15 cm
Package 1 Weight 219 g
Unit Type of Package 2 S04
Number of Units in Package 2 27
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 6.58 kg
Unit Type of Package 3 P06
Number of Units in Package 3 108
Package 3 Height 75 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 34.82 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
