Schneider Electric

GV4APN01

GV4APN01 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for GV4APN01 Schneider Electric

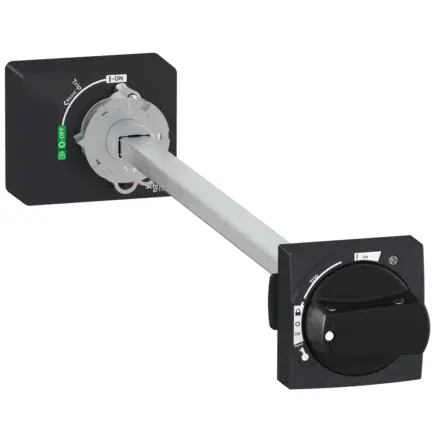

GV4APN01 Schneider Electric - TeSys GV4 - extended rotary handle black - IP54

Extended Description for GV4APN01 Schneider Electric

GV4APN01 Schneider Electric - TeSys GV extended rotary handle, for motor circuit breakers GV4 mounted inside an enclosure and to be operated externally.,For main switch usage, it provides a black handle on grey front plate with indication of 3 positions OFF, ON, TRIP.,To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting.,It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 214-627mm).,Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately).,Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset).,Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£28.09 Exc. VAT
£33.71 Inc. VAT

Main

Range TeSys,TeSys Deca
product or component type Rotary handle kit
accessory / separate part category Control accessory
Rotary handle mounting style Extended
Handle colour Black
Handle front plate colour Black
marking OFF - Trip - ON
Rotary handle padlocking Padlock in ON position,1 to 3 padlocks,Padlock in OFF position

Complementary

Range compatibility TeSys TeSys GV4,TeSys TeSys BV4,TeSys TeSys Deca
mounting mode Fixed
Mounting location Door of enclosure
Locking options description 1 to 3 padlocks Ø 4 to Ø 8
Back/door distance 214…627 mm

Environment

IP degree of protection IP54

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 9.000 cm
Package 1 Length 45.900 cm
Package 1 Weight 673.000 g
Unit Type of Package 2 S04
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 8.931 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
