Schneider Electric

GVAE113

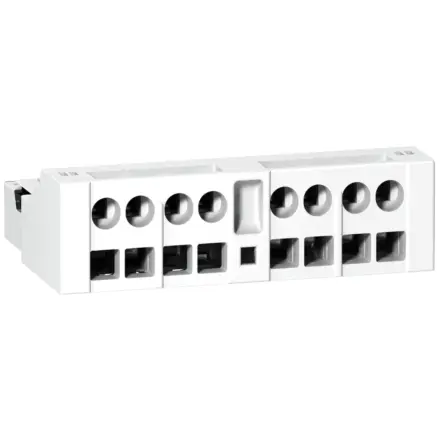

GVAE113 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for GVAE113 Schneider Electric

GVAE113 Schneider Electric - TeSys GV2 & GV3 - auxiliary contact - 1 NO + 1 NC

Extended Description for GVAE113 Schneider Electric

GVAE113 Schneider Electric - TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3.,1NO+1NC instantaneous auxiliary contacts.,Rated for operation up to 2A/240V AC and 1A/60V DC.,To be installed on front side of the circuit breaker, connection by spring terminals.,Sold in lots of 10 units.,Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Manufacturer New

25 available
1 - 2 w.days
£11.94 Exc. VAT
£14.33 Inc. VAT

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£4.70 Exc. VAT
£5.64 Inc. VAT

Main

Range TeSys,TeSys Deca
Device short name GVAE
product or component type Auxiliary contact block
Product compatibility GV2L,GV2ME,GV3L,GV2RT,GV2P,GV3P,GV2LE,LS1D323
Mounting location Front side
Pole contact composition 1 NO + 1 NC
Quantity per set Set of 10

Complementary

[Ui] rated insulation voltage 300 V conforming to UL 508,300 V conforming to CSA C22.2 No 14,250 V conforming to IEC 60947-1
[Ue] rated operational voltage 24...240 V AC,24...60 V DC
[Ith] conventional free air thermal current 2.5 A
Mechanical durability 100000 cycles
Minimum switching current 5 mA
Minimum switching voltage 17 V
Protection type GG fuse 10 A,GB2CB06 circuit breaker 10 A
Rated operational power in VA 120 VA at 110…120 V AC-15 - electrical durability: 100000 cycles,120 VA at 230…240 V AC-15 - electrical durability: 100000 cycles,48 VA at 24 V AC-15 - electrical durability: 100000 cycles,60 VA at 48 V AC-15 - electrical durability: 100000 cycles
Rated operational power in W 15 W at 48 V DC-13 - electrical durability: 100000 cycles,24 W at 24 V DC-13 - electrical durability: 100000 cycles,9 W at 60 V DC-13 - electrical durability: 100000 cycles
Height 13 mm
Width 44.5 mm
Depth 31.5 mm
net weight 0.05 kg
Colour Dark grey

Environment

Environmental characteristic Normal environment
Product certifications UKCA

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.2 cm
Package 1 Width 12.1 cm
Package 1 Length 7.3 cm
Package 1 Weight 17.0 g
Unit Type of Package 2 BB1
Number of Units in Package 2 10
Package 2 Height 6.2 cm
Package 2 Width 12.1 cm
Package 2 Length 7.3 cm
Package 2 Weight 180.0 g
Unit Type of Package 3 S02
Number of Units in Package 3 220
Package 3 Height 15.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 4.269 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
