Schneider Electric

HMIG2U

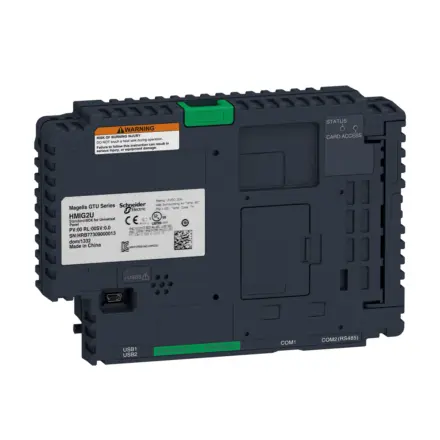

HMIG2U Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for HMIG2U Schneider Electric

HMIG2U Schneider Electric - Base unit, Harmony GTU, Standard Box for Universal Panel

Extended Description for HMIG2U Schneider Electric

HMIG2U Schneider Electric - This product is part of the Harmony GTU range, an offer of Harmony GTU Universal Box Modules.,The standard box features Vijeo Designer run time 8000 variables software package.,It is designed with backup memory of FRAM/MRAM 512kB and internal memory of RAM 1GB.,It is equipped with 10BASE-T/100BASE-T Ethernet port.,Communication port protocols are Modbus, Modbus TCP/IP and Uni-Telway.,Its dimensions are 188mm (width) x 45mm (depth) x 131mm (height) and weighs 0.9kg.,This product is certified by ATEX, IECEx, CE, CULus, IEC, CUL, DNV-GL, RCM and EAC. It meets CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213 and IEC 61132-2 standards.,Harmony GTU are universal panels that include smartphone-like interface and Wireless technology. They offer unmatched comfort of use with no compromise on performance and openness.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£541.74 Exc. VAT
£650.09 Inc. VAT

Main

range of product Harmony GTU
product or component type Base unit
Device short name standard box
Range compatibility Harmony GTU,Allen-Bradley,ABB,MitsubishI,Omron,Siemens
[Us] rated supply voltage 12...24 V DC power supply

Complementary

Integrated connection type Ethernet TCP/IP with 2 RJ45,COM1 serial link SUB-D 9 RS232C, transmission rate: 2400...115200 bps,COM2 serial link RJ45 RS485, transmission rate: 187.5 kbps,USB 2.0 port with 2 USB type A,USB 2.0 port mini B USB
Communication port protocol Modbus,Modbus TCP/IP,Uni-Telway
Operating system Harmony
Software package Vijeo Designer run time 8000 variables
Processor name CPU RISC 600 MHz
Data storage equipment 1 GB built-in flash memory
Port Ethernet 10BASE-T/100BASE-T
Memory description 256 MB RAM internal (2 x 13 mm board),512 KB NVRAM backup memory
Number of slots 1 slot(s) for SD card
Realtime clock Built-in
Local signalling LED: (steady), green for operating status (RUN),LED: (faded), green for stand-by,LED: (flashing), orange for software starting up,LED: (steady), red for power ON,LED: (alternate), green, orange and red for module error (ERR),LED: (alternate), red/orange for boot status,LED: (alternate), green/red for connection status
Type of cooling Natural convection
Width 188 mm
Height 131 mm
Depth 45 mm
net weight 0.9 kg

Environment

Standards CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508,Class I division 2 CSA C22.2 No 213, IEC 61132-2
Product certifications CE,CULus,ATEX,IEC-Ex,RCM,GL,KC,CUL,EAC,UKCA,UKEX
Resistance to fast transients 1 kV (signal ports) conforming to IEC 61000-4-4,2 kV (power ports) conforming to IEC 61000-4-4
Resistance to electrostatic discharge 6 kV contact discharge conforming to IEC 61000-4-2 level 3,8 kV air discharge conforming to IEC 61000-4-2 level 3
Ambient air temperature for operation 0…60 °C
Ambient air temperature for storage -20…60 °C
Pollution degree 2 conforming to IEC 61131-2 ed.3
Environmental characteristic Corrosive gas free
Relative humidity 10…90 % non-condensing
Operating altitude 2000 m
Vibration resistance 3.5 mm constant amplitude (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2,9.8 m/s² (f = 9…150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
Shock resistance 147 m/s² (X, Y, Z directions for 3 times) conforming to IEC 61131-2
Electromagnetic compatibility Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14.500 cm
Package 1 Width 21.500 cm
Package 1 Length 26.500 cm
Package 1 Weight 1.167 kg
Unit Type of Package 2 S04
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 5.731 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

Environmental disclosure
