Schneider Electric

HMIG5U22

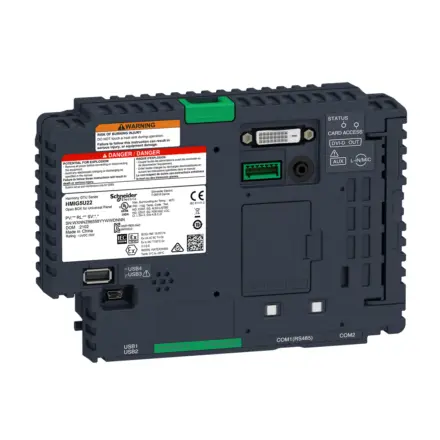

HMIG5U22 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for HMIG5U22 Schneider Electric

HMIG5U22 Schneider Electric - Open BOX Windows 10 Universal Panel with HMI software installed

Extended Description for HMIG5U22 Schneider Electric

HMIG5U22 Schneider Electric - This product is part of the Pro-face SP5000 range, an offer of High performance IoT-ready modular HMI panels from 7 inch to 19 inch (Width) screen.,The open box features Intel X86 1.33GHz processor and 32GB CFast card data storage, suits for universal panel.,It is designed with backup memory of NVRAM 512kB and internal memory of RAM 4GB. This open box supports Windows 10 IoT Enterprise 2019 LTSC 32bit operating system.,It is equipped with 10BASE-T/100BASE-TX/1000BASE-T Ethernet port.,Communication port protocols are Modbus, Modbus TCP/IP and Uni-Telway.,Its dimensions are 188mm (width) x 45mm (depth) x 131mm (height) and weighs 0.9kg.,This product is not installed with HMI software.,This product is certified by ATEX, IECEx, Ex CCC, CE, CULus, IEC, CUL, DNV-GL, RCM and EAC. It meets CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213 and IEC 61132-2 standards.,As a flagship model, SP5000 series, Smart Portal, is available. SP5000 series offers unprecedented solutions for utilization of increasingly sophisticated information.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1,126.10 Exc. VAT
£1,351.32 Inc. VAT

Main

range of product Harmony GTU
product or component type Base unit
Device short name Open Box
Range compatibility Harmony GTU
[Us] rated supply voltage 12...24 V DC power supply

Complementary

Integrated connection type Ethernet TCP/IP with 2 RJ45,COM1 serial link RJ45 RS485, transmission rate: 2400...115200 bps,COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 2400...115200 bps,Auxiliary port terminal block,USB 2.0 port mini B USB,DVI-D video port DVI-D,Microphone mini-jack,USB 2.0 port with 3 USB type A
Communication port protocol Modbus,Modbus TCP/IP,Uni-Telway
Operating system Windows 10 IoT Enterprise 32bit
Software package Vijeo Designer run time,EcoStruxure Operator Terminal Expert run time,Internet Explorer,.NET framework 4.0,Multimedia player
Processor name Intel X86 1.33 GHz
Data storage equipment 32 GB CFast card
Port Ethernet 10BASE-T/100BASE-TX/1000BASE-T
Memory description 512 KB NVRAM backup memory,4 GB RAM internal
Number of slots 1 slot(s) for SD card,2 slot(s) for Cfast card
Realtime clock Built-in
Local signalling LED, multi-colour for status
Type of cooling Natural convection
Width 188 mm
Height 131 mm
Depth 45 mm
net weight 0.9 kg

Environment

Standards CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508,Class I division 2 CSA C22.2 No 213, IEC 61132-2
Product certifications CE,CULus,ATEX,IEC-Ex,RCM,DNV-GL,KC,CUL,EAC,UKCA,UKEX
Ambient air temperature for operation 0…60 °C
Ambient air temperature for storage -20…60 °C
Pollution degree 2 conforming to IEC 61131-2 ed.3
Relative humidity 10…90 % non-condensing
Operating altitude 2000
Vibration resistance 3.5 mm constant amplitude (f = 5…9 Hz) conforming to IEC 61131-2,9.8 m/s² (f = 9…150 Hz) conforming to IEC 61131-2
Shock resistance 147 m/s² conforming to IEC 61131-2
Electromagnetic compatibility Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14.500 cm
Package 1 Width 21.500 cm
Package 1 Length 26.500 cm
Package 1 Weight 1.217 kg
Unit Type of Package 2 S04
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 6.055 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Catalogue

CAD

Environmental disclosure
