Schneider Electric

IMDIFL12MC

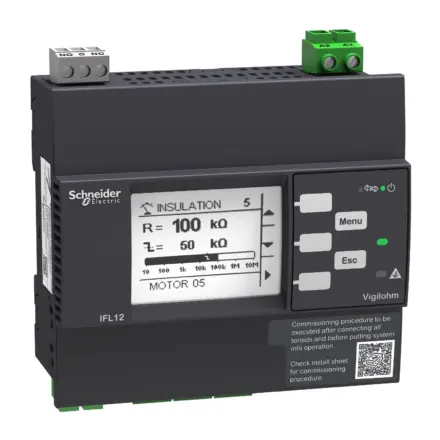

IMDIFL12MC Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for IMDIFL12MC Schneider Electric

IMDIFL12MC Schneider Electric - VIGILOHM ADVANCED 12 CHANNEL FAULT LOCATOR WITH MODBUS - 100-440VAC/DC

Extended Description for IMDIFL12MC Schneider Electric

IMDIFL12MC Schneider Electric - This device belongs to the Vigilohm range designed to monitor ungrounded/IT electrical networks at feeder level, in accordance to installation and products standards,This insulation fault location is only possible when it is associated to IM400 series, XM300 or XM200.,This device is dedicated to monitoring 12 feeders, AC, DC and ACDC, up to 1000V with the voltage adaptor, IFL12VA1T.,It mesures the insulation resistance and leakage capacitance per feeder.,Configuration is set from the front of the device, through the HMI screen, or from the communication port.,Main settings are related to alarm thresholds, channel naming, toroid type (Vigilohm type or other compatible ones), filtering time.,Per feeder, it displays insulation resistance from 100 ohms to 250 kilohms and leakage capacitance from 1 to 15 microfarad.,Auto-test starts automatically every 5 hours, and on demand.,In case the insulation resistance drops below the set threshold, an alarm is triggered thru the IFL output relay, HMI and communication port.,Once no fault is monitored, the alarm is cleared, the alarm relay is back to normal.,The device can be supplied by a 110VAC to 440VAC source or a 110VDC to 440VDC, all with a tolérence of plus or minus 15%.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£709.30 Exc. VAT
£851.16 Inc. VAT

Main

Range Vigilohm
Device short name IFL12MC
product or component type Insulation fault locator
device application Marine application,Standard environment application
electrical circuit type Large or highly disturbed network
electrical circuit type Power circuit,Control/command circuit
Earthing system IT
User language Spanish,German,Italian,Russian,French,Chinese,English,Portuguese

Complementary

Network rated voltage 0…480 V - AC at 45...440 Hz (device connected to phase) ,0…830 V - AC at 45...440 Hz (device connected to neutral) ,0…480 V - DC
Number of channels 12
Data recording Alarm logs
Type of measurement History of alarms,Network insulation resistance - measurement range: 200 Ohm...250 kOhm,Earth leakage capacitance - measurement range: 0.1...15 µF
Local signalling Yellow indicator light: insulation fault,Yellow flashing indicator light: communication,Green/red indicator light: product status,Green indicator light: satisfactory insulation,Yellow flashing indicator light: transient fault
Threshold setting Alarm: 200 Ohm...200 kOhm
Time delay range 0...120 min for signalling circuit
alarm per channel Alarm threshold: settable per feeder
Accuracy +/- 15 %
Response time <= 5 s
auxiliary supply voltage 100...440 V DC +/- 15 %,100...440 V AC 45...65 Hz +/- 15 %
Power consumption in VA 26 VA
Power consumption in W 10 W
Test function Auto test at start and every 5h,Remote test,Manual
output contact 1 C/O standard or fail-safe
breaking capacity 250 V - AC at 6 A,48 V - DC at 1 A
communication port protocol Modbus
Communication port support RS485
Display type Digital display
mounting mode Flush-mounted,Clip-on
mounting support Panel,DIN rail
Mounting position Vertical,Horizontal
Connections - terminals Power supply: removable screw terminal block0.2…2.5 mm²,Output relay: removable screw terminal block0.2…2.5 mm²,Toroids inputs: removable screw terminal block0.2…1.5 mm²,Communication: removable screw terminal block0.2…2.5 mm²,Voltage inputs: removable screw terminal block0.2…2.5 mm²
Material Thermoplastic
Overvoltage category III
net weight 0.5 kg
cut-out dimensions 92 x 104 mm
Height 110 mm
Width 108 mm
Depth 59 mm

Environment

IP degree of protection Case: IP20,Front face: IP54
Environmental characteristic Exposure to damp heat not in service conforming to IEC 60068-2-30,Exposure to damp heat in service conforming to IEC 60068-2-56,Salt mist conforming to IEC 60068-2-52
Operating altitude <= 3000 m
Pollution degree 2
Relative humidity 5…92 %
Type of installation Indoor
Standards IEC 60364-4-41,IEC 61010-1,IEC 60364-5-51,IEC 61557-9
Product certifications CE,DNV-GL,EAC,UL,cULus
Ambient air temperature for operation -25…55 °C
Ambient air temperature for storage -40…85 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.7 cm
Package 1 Width 18.2 cm
Package 1 Length 13.5 cm
Package 1 Weight 550.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 8
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.2 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

CAD

Environmental disclosure
