Schneider Electric

KAC1S

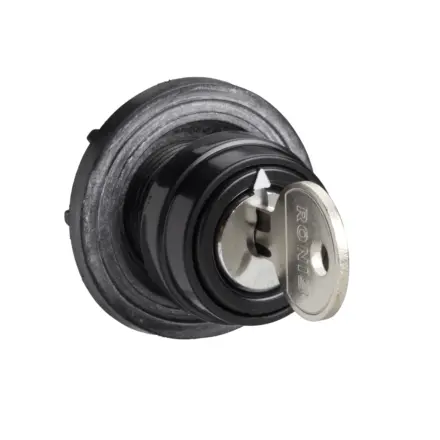

KAC1S Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for KAC1S Schneider Electric

KAC1S Schneider Electric - operating head 45 x 45 mm - black color - key - blank for engraving

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£13.48 Exc. VAT
£16.18 Inc. VAT

Main

range of product Harmony Series K
product or component type Cam switch operating head
Component name KAC
Product compatibility Front mounting bodies 12 and 20 A by Ø 22 mm hole
Cam switch head type With front plate 45 x 45 mm
Type of operator key 601A
Rotary handle padlocking Without
Presentation of legend With mat black legend
Switching angle 45 °,90 °

Complementary

Mechanical durability 1000000 cycles
CAD overall width 45 mm
CAD overall height 45 mm
CAD overall depth 69 mm
net weight 0.063 kg
compatibility code KAC

Environment

Protective treatment TC
Ambient air temperature for operation -25…55 °C
Ambient air temperature for storage -40…70 °C
Shock resistance 30 gn conforming to IEC 68-2-27
Vibration resistance 5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
IP degree of protection IP65 conforming to IEC 529,IP65 conforming to NF C 20-010

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.6 cm
Package 1 Width 6.6 cm
Package 1 Length 8.0 cm
Package 1 Weight 69.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 60
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.67 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

CAD
