Schneider Electric

KBC1H

KBC1H Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for KBC1H Schneider Electric

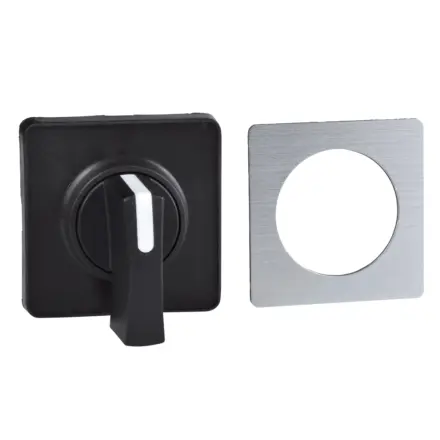

KBC1H Schneider Electric - operating head 45 x 45 mm - metallic color - black handle - blank for engraving

Extended Description for KBC1H Schneider Electric

KBC1H Schneider Electric - This Harmony K1, K2 range is a cam switch operating head.,It is supplied with 45mm x 45mm front plate and black handle 35mm length.,It is supplied with metallic legend (for engraving by user).,It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.,It weighs 48g.,It is a green premium product and conforms to international standard and certifications.,It is compatible with 12A and 20A by 22mm front mounting bodies.

Free Delivery to UK Mainland on orders over £25

Manufacturer New

9 available
1 - 2 w.days
£15.54 Exc. VAT
£18.65 Inc. VAT

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£4.04 Exc. VAT
£4.85 Inc. VAT

Environment

Shock Resistance 30 gn IEC 68-2-27
Ambient Air Temperature For Storage -40-70 °C
Vibration Resistance 5 gn 10-150 Hz)IEC 68-2-6
Ambient Air Temperature For Operation -25-55 °C
Ip Degree Of Protection IP65 conforming to IEC 529 || IP65 conforming to NF C 20-010
Protective Treatment TC

Offer Sustainability

Rohs Exemption Information Yes
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65 WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Regulation Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc Yes
Toxic Heavy Metal Free Yes
Mercury Free Yes
China Rohs Regulation X

Complementary

Mechanical Durability 1000000 cycles
Compatibility Code KBC
Cad Overall Depth 69 mm
Cad Overall Height 45 mm
Cad Overall Width 45 mm
Net Weight 0.048 kg
Length 35 mm

Contractual warranty

Warranty 18 months

Specifications

Range Of Product Harmony Series K
Component Name KBC
Rotary Handle Padlocking without
Presentation Of Legend with metallic
Type Of Operator Black handle 35 mm
Product Or Component Type cam switch operating head
Cam Switch Head Type with front plate 45 x 45 mm
Product Compatibility front mounting bodies 12 and 20 A Ø 22 mm hole
