Schneider Electric

KRA2500YA4

KRA2500YA4 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for KRA2500YA4 Schneider Electric

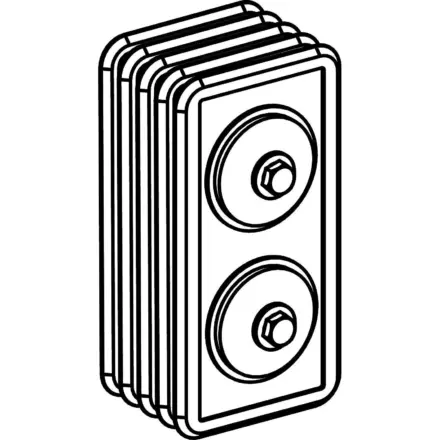

KRA2500YA4 Schneider Electric - CANALIS KR 4X2500AL JUNCTION BLOCK / YA

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£298.43 Exc. VAT
£358.12 Inc. VAT

Main

Range Canalis
Product name KR
product or component type Electrical and mechanical jointing
Device short name KRA
Range compatibility Canalis KR
accessory / separate part category Connection accessory
device application Jointing
Material Aluminium
[Ie] rated operational current 2500 A with aluminium
polarity 3L + N or 3L + PE or 3L + PEN

Complementary

Housing material Mineral epoxy resin
Contacts material Tinned aluminium
[Ue] rated operational voltage 1000 V
earth conductor Standard earth
Mounting location Indoor,Outdoor
mounting support Self-tapping screw
Product certifications CE,EAC,ATEX
Standards IEC 61439-6
Fixing mode By 2 bolts
Tightening torque 84 N.m
Width 100 mm
Height 270 mm
Colour Grey (RAL 7030)
Quantity per set Set of 1

Environment

IP degree of protection IP68 conforming to IEC 60529
IK degree of protection IK10 conforming to IEC 62262
Pollution degree 3

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 27.0 cm
Package 1 Width 10.0 cm
Package 1 Length 30.0 cm
Package 1 Weight 21.42 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Catalogue

Environmental disclosure
