Schneider Electric

KSA250AE4

KSA250AE4 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for KSA250AE4 Schneider Electric

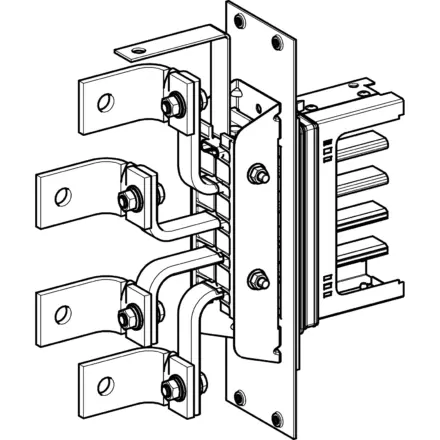

KSA250AE4 Schneider Electric - FLANGE FEED UNIT 250 A

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£233.95 Exc. VAT
£280.74 Inc. VAT

Main

range of product Canalis
Product name KS
Device short name KSA
Product compatibility Canalis KSA busbar trunking 100…250 A
Offer type Advanced,Rising main
product or component type Flange feed unit
Conductors material Aluminium
[Ie] rated operational current 250 A
[Ue] rated operational voltage 230...690 V
Number of circuits 1
Busbar trunking polarity 3L + N + PE
Protection type Without protection
Control type Without
Colour White (RAL 9001)

Complementary

Provided equipment End cover
Mounting location Right,Left
mounting mode By screws
mounting support Busbar
Body material Metal
Connections - terminals Bar
Width 261.5 mm
Depth 81 mm
Height 294 mm
net weight 2 kg
Standards IEC 61439-1,IEC 61439-6

Environment

IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.500 cm
Package 1 Width 28.000 cm
Package 1 Length 30.000 cm
Package 1 Weight 2.022 kg
Unit Type of Package 2 P06
Number of Units in Package 2 24
Package 2 Height 52.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 55.530 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
