Schneider Electric

KSA250ZJ4

KSA250ZJ4 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for KSA250ZJ4 Schneider Electric

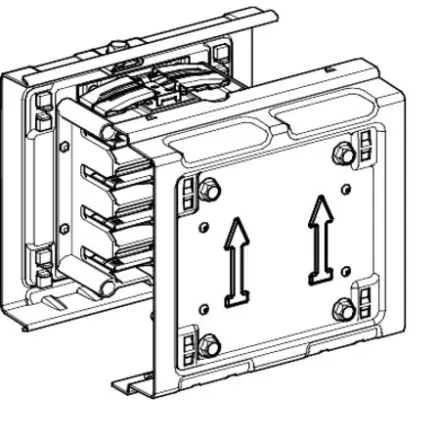

KSA250ZJ4 Schneider Electric - JOINTING DEVICE 400 A

Extended Description for KSA250ZJ4 Schneider Electric

KSA250ZJ4 Schneider Electric - Canalis electrical and mechanical jointing for KSA.,It's applied to medium power distribution.,The rated operational voltage is from 230VAC to 690VAC.,The rated operational current is 160A and 250A.,It belongs to spare part with white RAL 9001 surface treatment.,Designed with 1 circuit allowing.,It provides IP55 protection which conforming to IEC 60529 standard.,IK08 conforms to IEC 62262.,It is compliant with both IEC 60439-2 and IEC 61439-6.,It is also compliant with Green Premium (RoHS/REACH).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£80.12 Exc. VAT
£96.14 Inc. VAT

Main

range of product Canalis
Product name KS
product or component type Electrical and mechanical jointing
Product compatibility KS
[Ie] rated operational current 160 A,250 A
Offer type Spare part
Colour White (RAL 9001)

Complementary

device application Medium power distribution
[Ue] rated operational voltage 230...690 V
Control type Without
Number of circuits 1
Busbar trunking polarity 3L + N + PE
Width 178 mm
Depth 60 mm
Height 165 mm
net weight 1.6 kg

Environment

IK degree of protection IK08 conforming to IEC 62262
IP degree of protection IP55 conforming to IEC 60529
Standards IEC 60439-2,IEC 61439-6

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 12.000 cm
Package 1 Width 19.500 cm
Package 1 Length 22.500 cm
Package 1 Weight 1.800 kg
Unit Type of Package 2 P06
Number of Units in Package 2 40
Package 2 Height 80.000 cm
Package 2 Width 80.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 90.000 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
