Schneider Electric

KSA25HD502

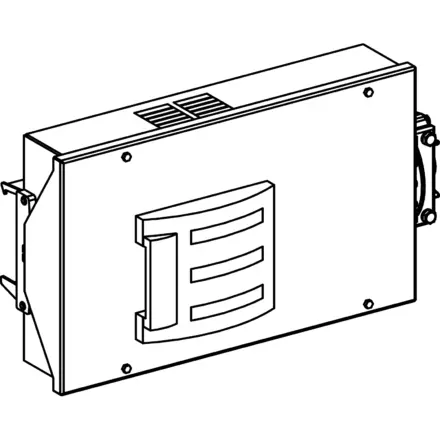

KSA25HD502 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for KSA25HD502 Schneider Electric

KSA25HD502 Schneider Electric - Tap off unit, Canalis KS, for switch disconnector FuPacT ISFT, 250A, 3L+PEN, with switch disconnector, IP55, RAL9001

Free Delivery to UK Mainland on orders over £25

Main

range of product Canalis
Range compatibility Canalis KS busbar trunking
product or component type Tap-off unit
busbar trunking compatibility Canalis KS busbar trunkingplug-in
[Ie] rated operational current 250 A at 35 °C
protection type fuse isolator: Efen fuse, size 1 conforming to DIN
Provided equipment fuse to be ordered separately
Mounting mode Plug-in with fixed polarity
tap-off unit polarity 3L+N+PE
Colour White (RAL 9001)

Complementary

device application Medium power distribution
[Uimp] rated impulse withstand voltage 6.8 kV
Network frequency 50/60 Hz
Electrical connection Cable clamp terminal - ISO63 185 mm² flexible,Cable clamp terminal - ISO63 185 mm² rigid
door/cover opening side Right
Tap-off unit disconnection mode By opening the door
Standards IEC 61439-1,IEC 61439-6
Body material Metal
Width 587 mm
Depth 120 mm
depth (door open) 763 mm
Height 350 mm
net weight 9 kg

Environment

Earthing system TT,TN-S,IT
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 12.0 cm
Package 1 Width 34.8 cm
Package 1 Length 57.3 cm
Package 1 Weight 9.0 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

Environmental disclosure
