Schneider Electric

KSA400DTC40

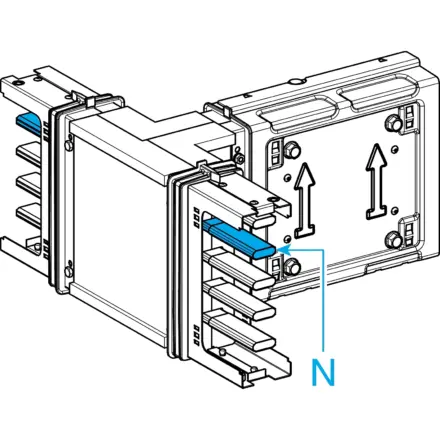

KSA400DTC40 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for KSA400DTC40 Schneider Electric

KSA400DTC40 Schneider Electric - TEE ELBOW 400 A

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£410.41 Exc. VAT
£492.49 Inc. VAT

Main

range of product Canalis
Product name KS
Device short name KSA
Offer type Advanced
product or component type Tee
Busbar description Standard
Product compatibility Canalis KSA busbar trunking 400 A
device application Change direction
Conductors material Aluminium
Busbar trunking polarity 3L + N + PE
[Ie] rated operational current 400 A at 35 °C
IP degree of protection IP55 conforming to IEC 60529
[Ue] rated operational voltage 230...690 V
Network frequency 50/60 Hz
Operating angle 90 °
Direction change type Edgewise to perpendicular - neutral to up
Colour White (RAL 9001)
Dimension type Made to measure

Complementary

Length 165 mm for side A,165 mm for side B,165 mm for side C
Width 54 mm
Height 146 mm
net weight 4.7 kg
Mounting location On trunking
Mounting position Any position
Electrical connection Lubricated sliding contact
mounting mode By screws
Standards IEC 61439-1,IEC 61439-6

Environment

IK degree of protection IK08 conforming to IEC 62262

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 16.6 cm
Package 1 Width 33 cm
Package 1 Length 28.5 cm
Package 1 Weight 6.4 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
