Schneider Electric

KSA630ZJ4

KSA630ZJ4 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for KSA630ZJ4 Schneider Electric

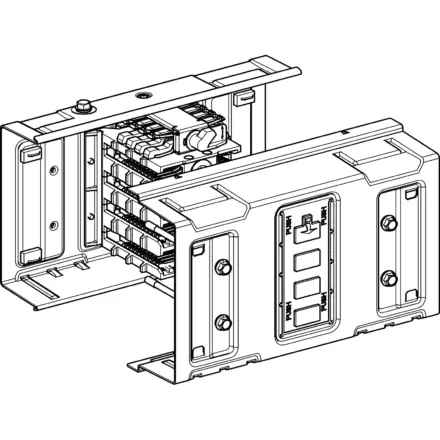

KSA630ZJ4 Schneider Electric - JOINTING DEVICE 630 A

Extended Description for KSA630ZJ4 Schneider Electric

KSA630ZJ4 Schneider Electric - Canalis electrical and mechanical jointing for KSA.,It's applied to medium power distribution.,The rated operational voltage is from 230VAC to 690VAC.,The rated operational current is 500A and 630A.,It belongs to spare part with white RAL 9001 surface treatment.,Designed with 1 circuit allowing.,It provides IP55 protection which conforming to IEC 60529 standard.,IK08 conforms to IEC 62262.,It is compliant with both IEC 60439-2 and IEC 61439-6.,It is also compliant with Green Premium (RoHS/REACH).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£192.99 Exc. VAT
£231.59 Inc. VAT

Main

range of product Canalis
Product name KS
product or component type Electrical and mechanical jointing
Product compatibility KS
[Ie] rated operational current 500 A,630 A
Offer type Spare part
Colour White (RAL 9001)

Complementary

device application Medium power distribution
[Ue] rated operational voltage 230...690 V
Control type Without
Number of circuits 1
Busbar trunking polarity 3L + N + PE
Width 276 mm
Depth 117 mm
Height 167 mm
net weight 4.35 kg

Environment

IK degree of protection IK08 conforming to IEC 62262
IP degree of protection IP55 conforming to IEC 60529
Standards IEC 61439-6,IEC 60439-2

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 12.0 cm
Package 1 Width 16.7 cm
Package 1 Length 27.3 cm
Package 1 Weight 4.3 kg
Unit Type of Package 2 P06
Number of Units in Package 2 20
Package 2 Height 50.0 cm
Package 2 Width 80.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 134.5 kg

Contractual warranty

Warranty 18 months
