Schneider Electric

KSB125HD5

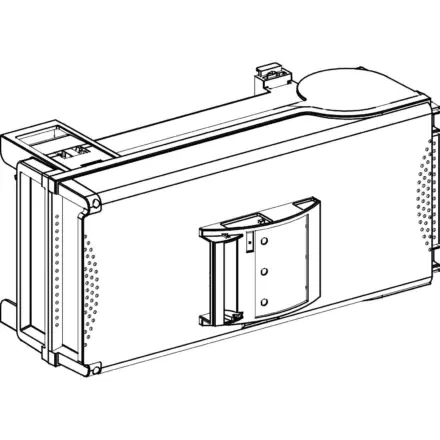

KSB125HD5 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for KSB125HD5 Schneider Electric

KSB125HD5 Schneider Electric - TAP OFF UNIT 125A FUSE T00

Free Delivery to UK Mainland on orders over £25

Main

range of product Canalis
Range compatibility Canalis KS busbar trunking
product or component type Tap-off unit
busbar trunking compatibility Canalis KS busbar trunkingplug-in
[Ie] rated operational current 125 A at 35 °C
protection type fuse isolator: Efen fuse, size 00 conforming to DIN
Provided equipment fuse to be ordered separately
Mounting mode Plug-in with fixed polarity
tap-off unit polarity 3L+N+PE
Colour White (RAL 9001)

Complementary

device application Medium power distribution
[Ue] rated operational voltage 500 V depending on protective device
[Uimp] rated impulse withstand voltage 6.8 kV
[Ui] rated insulation voltage 500 V depending on protective device
Network frequency 50/60 Hz
Electrical connection Cable clamp terminal 50 mm² rigid,Cable clamp terminal 50 mm² flexible
door/cover opening side Right
Tap-off unit disconnection mode By opening the door
Standards IEC 61439-1,IEC 61439-6
Body material Plastic
Width 144 mm
Depth 209 mm
depth (door open) 622.5 mm
Height 209 mm
net weight 2 kg

Environment

Earthing system TT,TN-S,IT
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 18.4 cm
Package 1 Width 22 cm
Package 1 Length 44.4 cm
Package 1 Weight 3.8 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

CAD

Environmental disclosure
