Schneider Electric

KSB50SF5

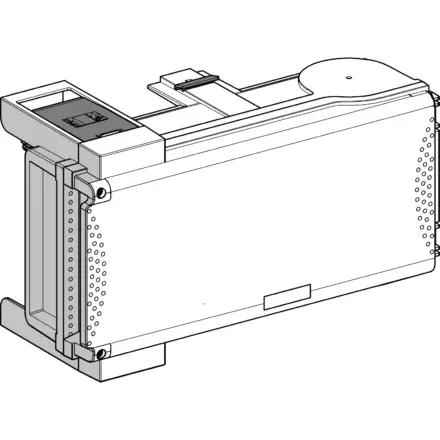

KSB50SF5 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for KSB50SF5 Schneider Electric

KSB50SF5 Schneider Electric - TAP OFF UNIT 50A FUSE 14X51

Extended Description for KSB50SF5 Schneider Electric

KSB50SF5 Schneider Electric - Canalis tap-off unit for KT and KS.,It's applied to medium power distribution and TN-C earthing system.,The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz.,The rated operational current is 50A at 35 â.,Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L+PEN.,It provided protection for size 14 x 51 fuses (Fuse to be ordered separately).,It provided tap-off unit disconnection by right opening the door.,Canalis KS busbar trunking compatibility with plug-in outlets, Canalis KT busbar trunking compatibility with KS type plug-in outlets.,It provides IP55 protection which conforming to IEC 60529 standard.,IK08 conforms to IEC 62262.,It is compliant with both IEC 61439-1 and IEC 61439-6.,It is also compliant with Green Premium (RoHS/REACH).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£125.22 Exc. VAT
£150.26 Inc. VAT

Main

range of product Canalis
Range compatibility Canalis KT busbar trunking,Canalis KS busbar trunking
product or component type Tap-off unit
busbar trunking compatibility Canalis KS busbar trunkingplug-in,Canalis KT busbar trunking with KS type plug-in
[Ie] rated operational current 50 A at 35 °C
protection type fuse isolator: for aM cylindrical fuse, size 14 x 51 mm - 50 A conforming to NF, fuse isolator: for gG cylindrical fuse, size 14 x 51 mm - 50 A conforming to NF
Provided equipment fuse to be ordered separately
Mounting mode Plug-in with fixed polarity
tap-off unit polarity 3L+PEN
Colour White (RAL 9001)

Complementary

device application Medium power distribution
[Ue] rated operational voltage 230...690 V depending on protective device
[Uimp] rated impulse withstand voltage 6.8 kV
[Ui] rated insulation voltage 500 V depending on protective device
Network frequency 50/60 Hz
Electrical connection Cable clamp terminal - ISO50 25 mm² flexible,Cable clamp terminal - ISO50 25 mm² rigid
door/cover opening side Right
Tap-off unit disconnection mode By opening the door
Standards IEC 61439-1,IEC 61439-6
Body material Plastic
Width 356 mm
Depth 103 mm
depth (door open) 432.5 mm
Height 202 mm
net weight 2.4 kg

Environment

Earthing system TN-C
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 16.700 cm
Package 1 Width 22.500 cm
Package 1 Length 35.800 cm
Package 1 Weight 2.142 kg
Unit Type of Package 2 P12
Number of Units in Package 2 38
Package 2 Height 80.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 105.000 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
