Schneider Electric

KSBQPRD

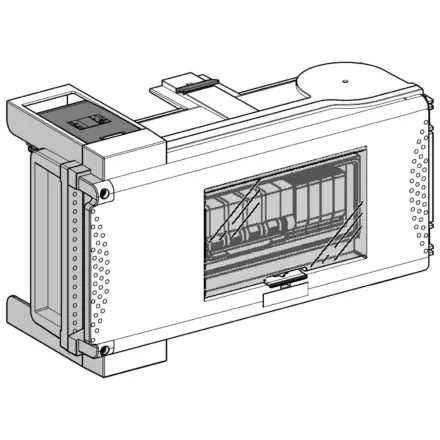

KSBQPRD Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for KSBQPRD Schneider Electric

KSBQPRD Schneider Electric - TAP-OFF UNIT WITH SURGE ARRESTER QUICKPRD

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£462.86 Exc. VAT
£555.43 Inc. VAT

Main

range of product Canalis
Product name KS
product or component type Tap-off unit
Protection type Surge arrester
tap-off unit polarity 3L+N+PE
Provided equipment Quick PRD40r 3P+N
Surge arrester class type Type 2

Complementary

[Ue] rated operational voltage 230...415 V
Network frequency 50/60 Hz
[Ics] rated service breaking capacity 25 kA
Maximum discharge current 40 kA
Electrical connection Pre-cabled
Tap-off unit disconnection mode By opening the tap-off unit cover
tap-off unit connector type With fixed polarity
Door opening side Right
Door opening size 432.5 mm
Standards IEC 60439-2,IEC 81643-1,EN 61643-11
Body material Plastic
Colour White (RAL 9001)
Width 357 mm
Depth 108 mm
Height 202 mm
net weight 3.4 kg

Environment

Earthing system TT,TN-C,TN-S
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.800 cm
Package 1 Width 20.200 cm
Package 1 Length 35.700 cm
Package 1 Weight 3.499 kg
Unit Type of Package 2 P12
Number of Units in Package 2 38
Package 2 Height 195.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 133.000 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

Environmental disclosure
