Schneider Electric

KTC3200YA4

KTC3200YA4 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for KTC3200YA4 Schneider Electric

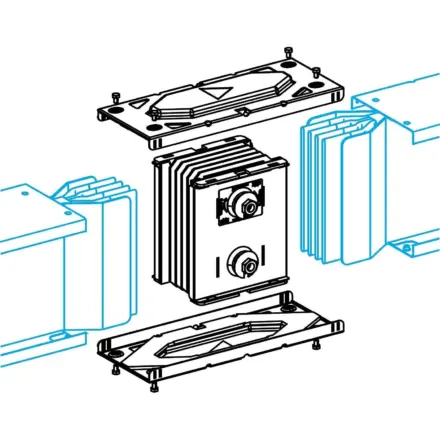

KTC3200YA4 Schneider Electric - KT 4X3200CO JUNCTION BLOC

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£590.92 Exc. VAT
£709.10 Inc. VAT

Main

Range Canalis
Product name KT
product or component type Junction block
Offer type Spare part
Busbar description Standard
Range compatibility Canalis KTC
accessory / separate part category Connection accessory
device application Jointing
Material Copper
[Ie] rated operational current 3200 A with copper
polarity 3L + N + PE
PE conductor Standard earth
Icw short-circuit version Standard version,Reinforced version
IP degree of protection IP55 conforming to IEC 60529
Length 360 mm

Complementary

Housing material Polyester film
mounting support Self-tapping screw
[Ue] rated operational voltage 1000 V
Number of circuits 1
Colour White (RAL 9001)
Width 140 mm
Height 244 mm
Standards IEC 61439-6,IEC 61439-1

Environment

IK degree of protection IK08 conforming to IEC 62262

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 24.4 cm
Package 1 Width 14.0 cm
Package 1 Length 40.0 cm
Package 1 Weight 10.0 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
