Schneider Electric

LA9G3103

LA9G3103 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LA9G3103 Schneider Electric

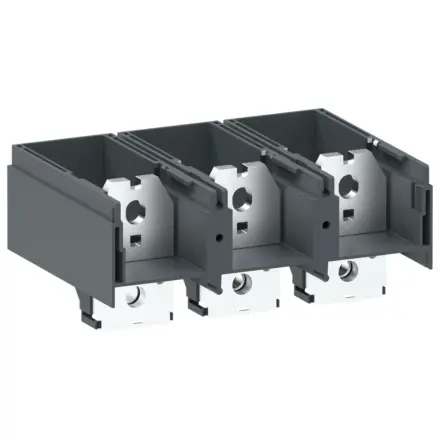

LA9G3103 Schneider Electric - Cable memory kit,TeSys Giga contactor,for LC1G630-800,3 pole

Extended Description for LA9G3103 Schneider Electric

LA9G3103 Schneider Electric - These accessories are cable memory kit for TeSys Giga 630-800 contactor.,It is used to 3 Poles electrical circuit.,To be used to hold cables in place when replacing contactor, making reinstallation faster and easier.,It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude.,Green Premium compliant (RoHs/Reach).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£44.13 Exc. VAT
£52.95 Inc. VAT

Main

product or component type Terminal extension
Product compatibility LC1G630...800

Complementary

Poles description 3P
Height 150 mm
Width 210 mm
Depth 91.5 mm
net weight 1.6 kg
Quantity per set Set of 2

Environment

IP degree of protection IP20 conforming to IEC 60529 (with terminal shields)
Pollution degree 3 conforming to IEC 60947-1
Operating altitude 3000 m without derating,5000 m with derating factor
Standards EN/IEC 60947-4-1,UL 60947-4-1,CSA C22.2 No 60947-4-1,GB/T 14048.4
Product certifications CE,UKCA,cULus
Ambient air temperature for operation -25…60 °C
Ambient air temperature for storage -60…80 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14 cm
Package 1 Width 29.5 cm
Package 1 Length 38.5 cm
Package 1 Weight 4.012 kg
Unit Type of Package 2 S04
Number of Units in Package 2 2
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 8.927 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
