Schneider Electric

LA9G3614

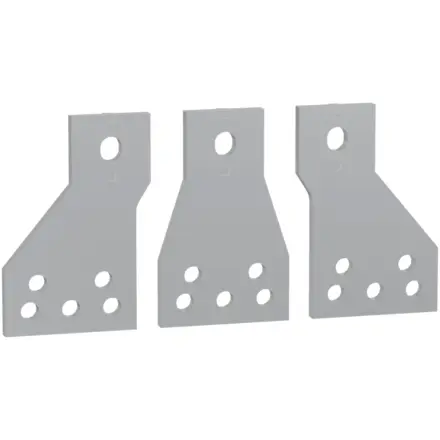

LA9G3614 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LA9G3614 Schneider Electric

LA9G3614 Schneider Electric - Straight terminal extension,TeSys Giga contactor,for LC1G630-800,3 pole,large connection,80 mm width

Extended Description for LA9G3614 Schneider Electric

LA9G3614 Schneider Electric - These accessories are straight terminal extension for TeSys Giga 630-800 contactor, 80mm wide connection.,It is used to 3 Poles electrical circuit.,They are screwed to the contactor terminals to increase the pitch for 80mm wide poles.,The rated current is up to 800 A.,It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude.,Green Premium compliant (RoHs/Reach).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£38.25 Exc. VAT
£45.90 Inc. VAT

Main

Device short name LA9G
product or component type Terminal extension
accessory / separate part category Connection accessories
Range compatibility TeSys LC1G,TeSys LR9G
Poles description 3P
Quantity per set Set of 3

Complementary

Connection pitch 80 mm
net weight 1.76 kg
Product compatibility LC1G630...800
Height 130 mm
Width 115 mm
Depth 58 mm

Environment

IP degree of protection IP20 conforming to IEC 60529
Pollution degree 3 conforming to IEC 60947-1
Product certifications cULus
Standards EN/IEC 60947-1,UL 60947-1,CSA C22.2 No 60947-1,GB/T 14048
Ambient air temperature for operation -40…60 °C
Ambient air temperature for storage -60…80 °C
Operating altitude 3000 m without derating,5000 m with derating factor

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.8 cm
Package 1 Width 11.5 cm
Package 1 Length 13.0 cm
Package 1 Weight 1.975 kg
Unit Type of Package 2 S02
Number of Units in Package 2 3
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.24 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
