Schneider Electric

LA9G81

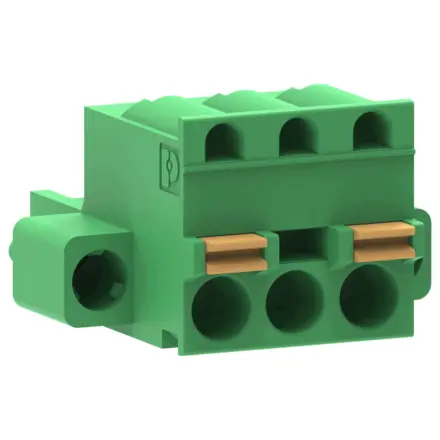

LA9G81 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LA9G81 Schneider Electric

LA9G81 Schneider Electric - Terminal block,TeSys Giga contactor,for LC1G,control module,push-in terminals

Extended Description for LA9G81 Schneider Electric

LA9G81 Schneider Electric - These accessories are push-in terminal block for TeSys Giga control module.,It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude.,Green Premium compliant (RoHs/Reach).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£3.05 Exc. VAT
£3.66 Inc. VAT

Main

Range TeSys
Device short name LA9G
product or component type Connector

Complementary

[Ue] rated operational voltage <= 600 V 50/60 Hz
[Ie] rated operational current 10 A
Rated short-duration power frequency withstand voltage 3 kV 1 minute
Pin number 3
Quantity per set Set of 1
Connections - terminals Control circuit: push-in 1 0.2…2.5 mm² - cable stiffness: solid stranded without cable end,Control circuit: push-in 1 0.25…2.5 mm² - cable stiffness: flexible with cable end,Control circuit: push-in 2 0.5…1.0 mm² with cable end
Height 15 mm
Width 26 mm
Depth 26 mm
net weight 0.05 kg

Environment

Overvoltage category III
Pollution degree 3 conforming to IEC 60947-1
Operating altitude 3000 m without derating,5000 m with derating factor
Ambient air temperature for operation -25…60 °C
Ambient air temperature for storage -60…80 °C
Standards EN/IEC 60947-5-1,UL 60947-5-1,CSA C22.2 No 60947-5-1,GB/T 14048.5
IP degree of protection IP20 conforming to IEC 60529

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.7 cm
Package 1 Width 5.5 cm
Package 1 Length 7.5 cm
Package 1 Weight 11.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 50
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 992.0 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
