Schneider Electric

LA9GTS330

LA9GTS330 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LA9GTS330 Schneider Electric

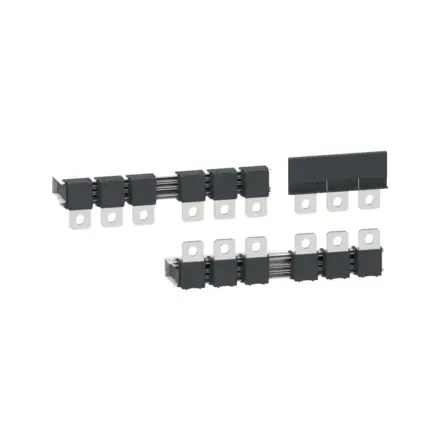

LA9GTS330 Schneider Electric - Star-Delta connection bar, for TeSys Giga contactor LC1G630-800 (Line & Delta)/LC1G265-500 (Star)

Extended Description for LA9GTS330 Schneider Electric

LA9GTS330 Schneider Electric - These accessories are star delta connection Kit for TeSys Giga contactor.,To be used by Line-Delta bars for TeSys Giga 630-800 contactor and Star bars for TeSys Giga 265-500 contactor.,They are sold by set of 1 part.,It provides IP20 protection conforming to IEC 60529.,It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude.,Green Premium compliant (RoHs/Reach).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£253.46 Exc. VAT
£304.15 Inc. VAT

Main

Range TeSys
Device short name LA9G
product or component type Set of connections
accessory / separate part category Connection accessory
electrical circuit type Star-delta
Quantity per set Set of 1

Complementary

Poles description 3P
Product compatibility LC1G265...500
Range compatibility TeSys Giga
Height 648.5 mm
Width 176 mm
Depth 88 mm
net weight 10.38 kg

Environment

Standards EN/IEC 60947-4-1
Ambient air temperature for storage -60…80 °C
Operating altitude 3000 m without derating,5000 m with derating factor

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 19.6 cm
Package 1 Width 30.6 cm
Package 1 Length 52.2 cm
Package 1 Weight 10.48 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
