Schneider Electric

LAD9V11

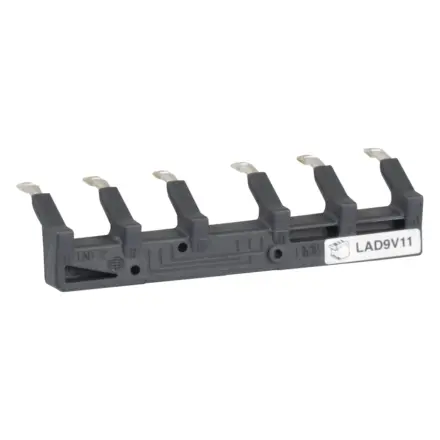

LAD9V11 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LAD9V11 Schneider Electric

LAD9V11 Schneider Electric - Set of power connections, inversing busbar, for 3P reversing contactors assembly, LC1D09-D38 lugs terminals

Extended Description for LAD9V11 Schneider Electric

LAD9V11 Schneider Electric - TeSys D power connection module for 3-pole contactors LC1D093-D323 (with spring terminals).,For assembling contactors in reversing motor starters and when using LAD331 and LAD341 power connection modules.,It provides the reverser connection of 2 contactors on motor side.,Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£23.02 Exc. VAT
£27.63 Inc. VAT

Main

range of product TeSys Deca
Range TeSys,Linergy
Device short name LAD9
product or component type Set of connections
Poles description 3P
electrical circuit type Reversing contactor
Range compatibility TeSys TeSys D,TeSys TeSys Deca
Product compatibility LC1D09,LC1D12,LC1D18,LC1D25,LC1D32,LC1D38

Complementary

Mounting location Downstream
Connections - terminals Lugs-ring terminals

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.5 cm
Package 1 Width 8.0 cm
Package 1 Length 9.0 cm
Package 1 Weight 26.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 100
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.258 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

CAD
