Description for LC1BM33M22 Schneider Electric

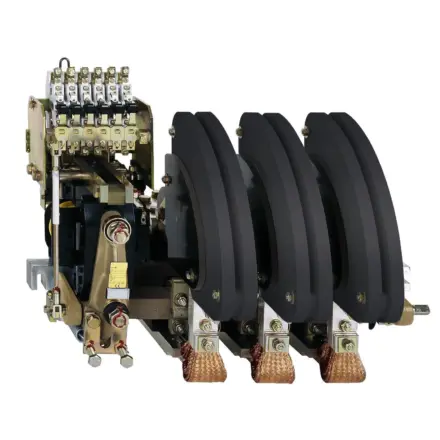

LC1BM33M22 Schneider Electric - bar-mounted contactor - TeSys LC1-BM - 3 poles - AC-3 440V 1000 A - coil 220V AC

Free Delivery to UK Mainland on orders over £25

Main

Range TeSys
Product name TeSys B
product or component type Contactor
Device short name LC1BM
Contactor application Motor-heating-lighting
Utilisation category AC-3,AC-1
Control circuit type AC
Coil type Standard
Poles description 3P
Pole contact composition 3 NO
[Ie] rated operational current 1250 A (at <40 °C) AC AC-1 for power circuit,1000 A (at <55 °C) AC AC-3 for power circuit
Motor power kW 530 kW at 1000 V AC 50/60 Hz (AC-3),160 kW at 400 V AC 50/60 Hz (AC-4),280 kW at 220...230 V AC 50/60 Hz (AC-3),500 kW at 380...400 V AC 50/60 Hz (AC-3),530 kW at 415 V AC 50/60 Hz (AC-3),560 kW at 440 V AC 50/60 Hz (AC-3),600 kW at 500 V AC 50/60 Hz (AC-3),670 kW at 660...690 V AC 50/60 Hz (AC-3)
Auxiliary contact composition 2 NO + 2 NC
[Uc] control circuit voltage 220 V AC 50...400 Hz

Complementary

Control circuit voltage limits Drop-out: 0.3...0.5 Uc at 50...400 Hz,Operational: 0.85...1.1 Uc at 50...400 Hz
[Ui] rated insulation voltage 1000 V - for power circuit conforming to IEC 60158-1,1000 V - for power circuit conforming to IEC 60947-4,1500 V - for power circuit conforming to VDE 0110 group C
mounting mode Fixed
mounting support Notched mounting rails,Bar support bracket
Tightening torque Power circuit: 35 N.m - on bars
[Ue] rated operational voltage Power circuit: <= 1000 V AC 50/60 Hz
[Ith] conventional free air thermal current 1250 A (at 40 °C) for power circuit
Irms rated making capacity 10000 A at 1000 V AC for power circuit conforming to IEC 60158-1,10000 A at 1000 V AC for power circuit conforming to IEC 60947-4
Rated breaking capacity 10000 A at 440 V for power circuit conforming to IEC 60158-1,10000 A at 440 V for power circuit conforming to IEC 60947-4,4000 A at 1000 V for power circuit conforming to IEC 60158-1,4000 A at 1000 V for power circuit conforming to IEC 60947-4,8000 A at 660...690 V for power circuit conforming to IEC 60158-1,8000 A at 660...690 V for power circuit conforming to IEC 60947-4,9000 A at 500 V for power circuit conforming to IEC 60158-1,9000 A at 500 V for power circuit conforming to IEC 60947-4
Associated fuse rating 1200 A aM at <= 440 V for power circuit,1200 A gI at <= 440 V for power circuit,1500 A gI at <= 440 V for power circuit
Average impedance 0.18 mOhm - Ith 1250 A 50 Hz for power circuit
Power dissipation per pole 180 W AC-3 - Ith 1250 A,280 W AC-1 - Ith 1250 A
Inrush power in VA 1300 VA
Hold-in power consumption in VA 31 VA 50/60 Hz
Operating time 100...150 ms closing,50...100 ms opening
Mechanical durability 1200000 cycles
Maximum operating rate 120 cyc/h 55 °C
Height 490 mm
Width 570 mm
Depth 475 mm
net weight 57 kg

Environment

Standards VDE 0660,BS 5424,IEC 60947-4,IEC 60158-1,NF C 63-110
Product certifications RINA,CSA,BV
Protective treatment TC,TH
Ambient air temperature for operation -5…55 °C
Ambient air temperature for storage -60…80 °C
Operating altitude 3000 m without derating

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 60 cm
Package 1 Width 68 cm
Package 1 Length 54 cm
Package 1 Weight 54 kg

Contractual warranty

Warranty 18 months
