Schneider Electric

LC1D32BNE

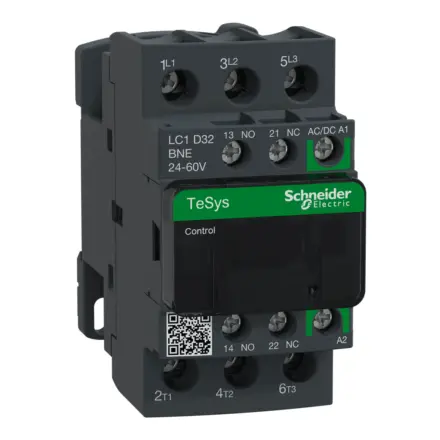

LC1D32BNE Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LC1D32BNE Schneider Electric

LC1D32BNE Schneider Electric - TeSys D contactor - 3P - <= 440 V - 32 A AC-3 - 24...60 V AC/DC coil

Extended Description for LC1D32BNE Schneider Electric

LC1D32BNE Schneider Electric - TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V).,It provides a low consumption 24-60V AC/DC coil with electronic control for direct PLC output connection, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals.,For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability.,Compact (45mm width), DIN-rail mounting or screw fixing.,Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£83.13 Exc. VAT
£99.75 Inc. VAT

Main

Range TeSys,TeSys Deca
range of product TeSys Deca
product or component type Contactor
Device short name LC1D
Contactor application Motor control,Resistive load
Utilisation category AC-1,AC-3,AC-3e
Poles description 3P
[Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz
[Ie] rated operational current 32 A (at <60 °C) at <= 440 V AC-3 for power circuit,50 A (at <60 °C) at <= 440 V AC-1 for power circuit,32 A (at <60 °C) at <= 440 V AC-3e for power circuit
[Uc] control circuit voltage 24...60 V AC 50/60 Hz,24...60 V DC

Complementary

Motor power kW 7.5 kW at 220...230 V AC 50 Hz (AC-3),15 kW at 380...400 V AC 50 Hz (AC-3),15 kW at 415 V AC 50 Hz (AC-3),15 kW at 440 V AC 50 Hz (AC-3),18.5 kW at 500 V AC 50 Hz (AC-3),18.5 kW at 660...690 V AC 50 Hz (AC-3),7.5 kW at 220...230 V AC 50 Hz (AC-3e),15 kW at 380...400 V AC 50 Hz (AC-3e),15 kW at 415 V AC 50 Hz (AC-3e),15 kW at 440 V AC 50 Hz (AC-3e),18.5 kW at 500 V AC 50 Hz (AC-3e),18.5 kW at 660...690 V AC 50 Hz (AC-3e)
Motor power hp 2 hp at 115 V AC 50/60 Hz for 1 phase motors,5 hp at 230/240 V AC 50/60 Hz for 1 phase motors,10 hp at 200/208 V AC 50/60 Hz for 3 phases motors,10 hp at 230/240 V AC 50/60 Hz for 3 phases motors,20 hp at 460/480 V AC 50/60 Hz for 3 phases motors,25 hp at 575/600 V AC 50/60 Hz for 3 phases motors
compatibility code LC1D
Pole contact composition 3 NO
Protective cover With
[Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit,50 A (at 60 °C) for power circuit
Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1,250 A DC for signalling circuit conforming to IEC 60947-5-1,550 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 550 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 100 A - 1 s for signalling circuit,120 A - 500 ms for signalling circuit,140 A - 100 ms for signalling circuit,60 A 40 °C - 10 min for power circuit,138 A 40 °C - 1 min for power circuit,260 A 40 °C - 10 s for power circuit,430 A 40 °C - 1 s for power circuit
Associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1,63 A gG at <= 690 V coordination type 1 for power circuit,63 A gG at <= 690 V coordination type 2 for power circuit
Average impedance 2 mOhm - Ith 50 A 50 Hz for power circuit
Power dissipation per pole 2 W AC-3,5 W AC-1,2 W AC-3e
[Ui] rated insulation voltage Power circuit: 690 V conforming to IEC 60947-4-1,Signalling circuit: 690 V conforming to IEC 60947-1
Overvoltage category III
Pollution degree 3
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1,B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Mechanical durability 15 Mcycles
Electrical durability 2.1 Mcycles 29 A AC-3 at Ue <= 440 V,0.9 Mcycles 50 A AC-1 at Ue <= 440 V,2.1 Mcycles 29 A AC-3e at Ue <= 440 V
Control circuit type AC/DC at 50/60 Hz AC/DC electronic
Coil technology Built-in bidirectional peak limiting
Control circuit voltage limits <= 0.1 Uc (-40…70 °C):drop-out AC/DC,0.85...1.1 Uc (-40…60 °C):operational AC,0.8...1.1 Uc (-40…60 °C):operational DC,1...1.1 Uc (60…70 °C):operational AC/DC
Inrush power in VA 15 VA 50/60 Hz (at 20 °C)
Inrush power in W 14 W (at 20 °C)
Hold-in power consumption in VA 0.9 VA 50/60 Hz (at 20 °C)
Hold-in power consumption in W 0.6 W at 20 °C
Heat dissipation 0.6 W at 50/60 Hz
Operating time 45...55 ms closing,20...90 ms opening
Maximum operating rate 3600 cyc/h 60 °C
Maximum operating rate 3600 cyc/h at 60 °C
Connections - terminals Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid,Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: flexible without cable end,Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: flexible without cable end,Power circuit: screw clamp terminals 1 1…10 mm² - cable stiffness: flexible with cable end,Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible with cable end,Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: solid,Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: solid
Tightening torque Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm,Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2,Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm,Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2,Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 M4,Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 M3.5
Auxiliary contact composition 1 NO + 1 NC
Auxiliary contacts type type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1, type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency 25...400 Hz
Minimum switching voltage 17 V for signalling circuit
Minimum switching current 5 mA for signalling circuit
Insulation resistance > 10 MOhm for signalling circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contact,1.5 ms on energisation between NC and NO contact
mounting support Rail,Plate

Environment

Standards EN/IEC 60947-4-1,EN/IEC 60947-5-1,UL 60947-4-1,CSA C22.2 No 60947-4-1,IEC 60335-1
Product certifications CCC,CSA,EAC,UL,KC,DNV-GL,LROS (Lloyds register of shipping),UKCA
IP degree of protection IP20 front face conforming to IEC 60529
Climatic withstand conforming to IACS E10 exposure to damp heat, conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Permissible ambient air temperature around the device -40…60 °C,60…70 °C with derating
Operating altitude 0...3000 m
Fire resistance 850 °C conforming to IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations contactor open (2 Gn, 5...300 Hz) ,Vibrations contactor closed (4 Gn, 5...300 Hz) ,Shocks contactor closed (15 Gn for 11 ms) ,Shocks contactor open (8 Gn for 11 ms)
Height 85 mm
Width 45 mm
Depth 92 mm
net weight 0.438 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 9.500 cm
Package 1 Length 12.000 cm
Package 1 Weight 458.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.162 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
