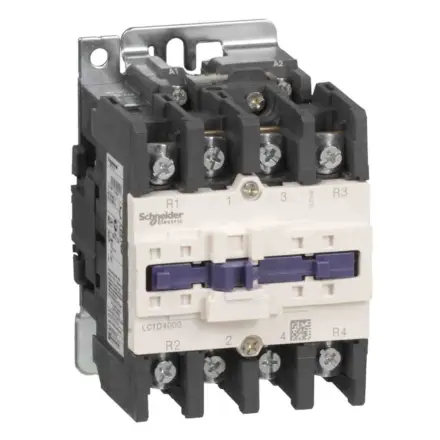

LC1D400086SWS207 Schneider Electric - TeSys D contactor S207 - 4P (2NO+2NC) AC-1 60A <=440V - coil 72V DC wide

Extended Description for LC1D400086SWS207 Schneider Electric

LC1D400086SWS207 Schneider Electric - TeSys Deca railway contactor, 4 poles (2NO+2NC), for resistive load applications up to 60A/440V AC-1.,It is fully compliant with railway standards.,It provides a 24V DC wide range coil, connection by lug-ring terminals.,It procures high reliability and durability with operating rates up to 3600 cycles/hour and environment temperature 60°C.,Multi international standards certified, Green Premium product (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£716.05 Exc. VAT
£859.26 Inc. VAT

Main

Range TeSys,TeSys Deca
range of product TeSys Deca
product or component type Contactor
Device short name LC1D
Contactor application Resistive load
Utilisation category AC-1
Poles description 4P
[Ue] rated operational voltage Power circuit: <= 1000 V AC 25...400 Hz
[Ie] rated operational current 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

Complementary

Pole contact composition 2 NO + 2 NC
Protective cover With
[Ui] rated insulation voltage Power circuit: 1000 V conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Overvoltage category III
[Ith] conventional free air thermal current 60 A (at 60 °C) for power circuit
Irms rated making capacity 800 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 800 A at 440 V for power circuit conforming to IEC 60947
Associated fuse rating 80 A gG at <= 690 V coordination type 1 for power circuit,80 A gG at <= 690 V coordination type 2 for power circuit
Time constant 75 ms
Control circuit type DC wide range
Coil technology Built-in bidirectional peak limiting diode suppressor
Control circuit voltage limits 0.1...0.3 Uc (-40…70 °C):drop-out DC,0.7...1.25 Uc (-40…50 °C):operational DC,1...1.25 Uc (50…70 °C):operational DC
Average impedance 1.5 mOhm - Ith 60 A 50 Hz for power circuit
Power dissipation per pole 5.4 W AC-1
Operating time 20...35 ms opening,85...110 ms closing
Maximum operating rate 3600 cyc/h 60 °C
Inrush power in W 22 W (at 20 °C)
Hold-in power consumption in W 22 W at 20 °C
Connections - terminals Power circuit: lugs-ring terminals - external diameter: 16.5 mm,Control circuit: lugs-ring terminals - external diameter: 8 mm
Tightening torque Control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5,Control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5,Power circuit: 2.5 N.m - on lugs-ring terminals hexagonal screw head 10 mm M6
mounting support Plate,Rail
Electrical durability 1.4 Mcycles 60 A AC-1 at Ue <= 440 V
Mechanical durability 10 Mcycles
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1,B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Operating altitude 0...3000 m
compatibility code LC1D
Standards EN/IEC 60947-4-1,EN/IEC 60947-5-1,EN 45545: R22 HL3,EN 45545: R26 HL3,DIN 5510-2
Product certifications IEC,CCC,UKCA

Environment

Climatic withstand conforming to IACS E10, conforming to IEC 60947-1 Annex Q category D
Ambient air temperature for storage -60…80 °C
Fire resistance 850 °C conforming to IEC 60695-2-1
Height 127 mm
Width 85 mm
Depth 182 mm
net weight 2.21 kg
Mechanical robustness Vibrations contactor open (2 Gn, 5...300 Hz) ,Vibrations contactor closed (4 Gn, 5...300 Hz) ,Shocks contactor open (10 Gn for 11 ms) ,Shocks contactor closed (15 Gn for 11 ms)

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.0 cm
Package 1 Width 16.5 cm
Package 1 Length 21.5 cm
Package 1 Weight 2.447 kg
Unit Type of Package 2 S02
Number of Units in Package 2 2
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.154 kg
Unit Type of Package 3 P06
Number of Units in Package 3 32
Package 3 Height 75.0 cm
Package 3 Width 80.0 cm
Package 3 Length 60.0 cm
Package 3 Weight 90.464 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
