Schneider Electric

LC1D50F7

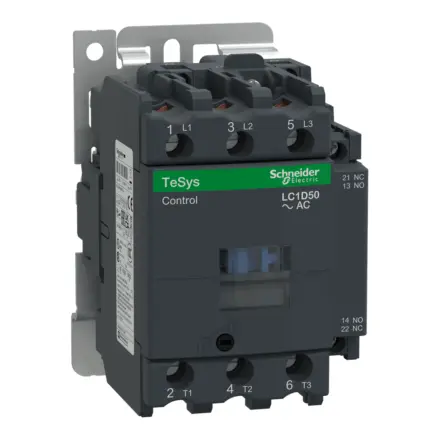

LC1D50F7 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LC1D50F7 Schneider Electric

LC1D50F7 Schneider Electric - CONTACTOR 600VAC 50AMP IEC +OPTIONS

Extended Description for LC1D50F7 Schneider Electric

LC1D50F7 Schneider Electric - TeSys Deca contactor, 3 poles (3NO),for motor control applications 50A/690V,AC-3 33kW@690V.,and for non-inductive load control applications up to 80A@60â in category AC-1.,It provides a 110V 50/60Hz AC coil,1NO/1NC built-in auxiliary contact, connection by screw clamp terminals.,For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications.,Very compact (45mm width), DIN-rail mounting or screw fixing.,Multi standards certified (IEC, UL, CSA, CCC, EN), Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£120.25 Exc. VAT
£144.30 Inc. VAT

Main

Range TeSys
range of product TeSys Deca
product or component type Contactor
Device short name LC1D
Contactor application Resistive load,Motor control
Utilisation category AC-1,AC-4,AC-3,AC-3e,AC-1
Poles description 3P
[Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz
[Ie] rated operational current 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit,50 A (at <60 °C) at <= 440 V AC AC-3e for power circuit,50 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
[Uc] control circuit voltage 110 V DC

Complementary

Motor power kW 25 kW at 415 V AC 50 Hz (AC-3),30 kW at 440 V AC 50 Hz (AC-3),30 kW at 500 V AC 50 Hz (AC-3),33 kW at 660...690 V AC 50 Hz (AC-3),15 kW at 220...230 V AC 50 Hz (AC-3),11 kW at 400 V AC 50 Hz (AC-4),30 kW at 1000 V AC 50 Hz (AC-3),22 kW at 380...400 V AC 50 Hz (AC-3e),25 kW at 415 V AC 50 Hz (AC-3e),30 kW at 440 V AC 50 Hz (AC-3e),30 kW at 500 V AC 50 Hz (AC-3e),33 kW at 660...690 V AC 50 Hz (AC-3e),15 kW at 220...230 V AC 50 Hz (AC-3e),30 kW at 1000 V AC 50 Hz (AC-3e),25 kW at 415 V AC 50 Hz,22 kW at 380...400 V AC 50 Hz
Motor power hp 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors,15 hp at 200/208 V AC 60 Hz for 3 phases motors,15 hp at 230/240 V AC 60 Hz for 3 phases motors,40 hp at 460/480 V AC 60 Hz for 3 phases motors,40 hp at 575/600 V AC 60 Hz for 3 phases motors,3 hp at 115 V AC 60 Hz for 1 phase motors
compatibility code LC1D
Pole contact composition 3 NO
Protective cover With
[Ith] conventional free air thermal current 80 A (at 60 °C) for power circuit,10 A (at 60 °C) for control circuit
Irms rated making capacity 140 A AC for control circuit conforming to IEC 60947-5-1,900 A at 440 V for power circuit conforming to IEC 60947,250 A DC for control circuit conforming to IEC 60947-5-1
Rated breaking capacity 900 A at 440 V for power circuit conforming to IEC 60947
Associated fuse rating 100 A gG at <= 690 V coordination type 1 for power circuit,100 A gG at <= 690 V coordination type 2 for power circuit conforming to IEC 60947-5-1,10 A gG for control circuit conforming to IEC 60947-5-1
Power dissipation per pole 9.6 W AC-1,3.7 W AC-3e,3.7 W AC-3
[Ui] rated insulation voltage Control circuit: 600 V UL certified,Power circuit: 600 V CSA certified,Power circuit: 600 V UL certified conforming to IEC 60947-1,Control circuit: 690 V conforming to IEC 60947-1,Power circuit: 690 V CSA certified conforming to IEC 60947-1,Control circuit: 600 V CSA certified
Overvoltage category III
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1,B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Mechanical durability 10000000 cycles
Control circuit type DC standard
Coil technology Built-in bidirectional peak limiting diode suppressor
Control circuit voltage limits 0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz,0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz,1...1.1 Uc (60…70 °C):operational AC 50/60 Hz,0.75...1.25 Uc (-40…60 °C):operational DC,0.1...0.3 Uc (-40…70 °C):drop-out DC
Inrush power in VA 160 VA cos phi 0.75 (at 20 °C)
Inrush power in W 19 W (at 20 °C)
Hold-in power consumption in VA 15 VA 50 Hz cos phi 0.3 (at 20 °C)
Hold-in power consumption in W 7.4 W at 20 °C
Operating time 12...26 ms closing,50 ms closing,20 ms opening
Time constant 34 ms
Maximum operating rate 3600 cyc/h 60 °C
Connections - terminals Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: rigid without cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end,Power circuit: screw terminals 1 2.5…25 mm² - cable stiffness: rigid,Power circuit: screw terminals 2 2.5…16 mm² - cable stiffness: rigid without cable end,Power circuit: screw terminals 1 2.5…25 mm² - cable stiffness: flexible without cable end,Power circuit: screw terminals 2 2.5…16 mm² - cable stiffness: flexible without cable end,Power circuit: screw terminals 1 2.5…25 mm² - cable stiffness: flexible with cable end,Power circuit: screw terminals 2 2.5…10 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: rigid,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: rigid
Tightening torque Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver Philips No 2,Power circuit: 5 N.m - on screw terminal - with screwdriver flat Ø 6 to Ø 8 mm,Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver pozidriv No 2,Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm
Auxiliary contact composition 1 NO + 1 NC
Auxiliary contacts type type mirror contact 1 NC conforming to IEC 60947-4-1, type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Minimum switching voltage 17 V for control circuit
Minimum switching current 5 mA for control circuit
Insulation resistance > 10 MOhm for control circuit
Non-overlap time 1.5 ms on energisation between NC and NO contacts,1.5 ms on de-energisation between NC and NO contacts
mounting support Rail,Rail

Environment

Standards CSA C22.2 No 14,IEC 60947-4-1,IEC 60947-5-1,EN 60947-5-1,EN 60947-4-1
Product certifications GL,LROS (Lloyds register of shipping),RINA,CCC,BV,DNV,GOST,CSA,UKCA,GL
IP degree of protection IP2X conforming to VDE 0106,IP2X conforming to IEC 60529
Climatic withstand conforming to IACS E10 exposure to damp heat
Operating altitude 0...3000 m
Fire resistance 850 °C conforming to IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Mechanical robustness Shocks contactor closed (15 Gn for 11 ms) ,Vibrations contactor opened (2 Gn, 5...300 Hz) ,Vibrations contactor closed (4 Gn, 5...300 Hz) ,Shocks contactor opened (10 Gn for 11 ms)
Height 127 mm
Width 85 mm
Depth 176 mm
net weight 2.185 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.5 cm
Package 1 Width 13.2 cm
Package 1 Length 14.0 cm
Package 1 Weight 1.448 kg
Unit Type of Package 2 S02
Number of Units in Package 2 5
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 7.538 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

CAD

Environmental disclosure
