LC1D800046SWS207

LC1D800046SWS207 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LC1D800046SWS207 Schneider Electric

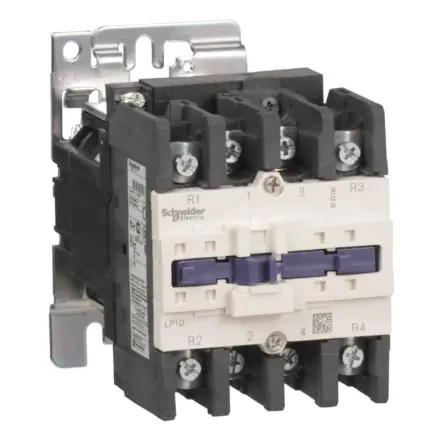

LC1D800046SWS207 Schneider Electric - TeSys D contactor S207 - 4P (4NO) AC-1 125A <=440V - coil 72V DC wide

Extended Description for LC1D800046SWS207 Schneider Electric

LC1D800046SWS207 Schneider Electric - TeSys Deca railway contactor, 4 poles (4NO), for resistive load applications up to 125A/440V AC-1.,It is fully compliant with railway standards.,It provides a 72V DC wide range coil, connection by lug-ring terminals.,It procures high reliability and durability with operating rates up to 3600 cycles/hour and environment temperature 60°C.,It provides IP20 protection on front face confirming to IEC 60529,Multi international standards certified, Green Premium product (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£553.88 Exc. VAT
£664.66 Inc. VAT

Main

Range TeSys,TeSys Deca
range of product TeSys Deca
product or component type Contactor
Device short name LC1D
Contactor application Resistive load
Utilisation category AC-1,AC-3,AC-3e,AC-4
Poles description 4P
[Ue] rated operational voltage Power circuit: <= 1000 V AC 25...400 Hz
[Ie] rated operational current 125 A (at <60 °C) at <= 1000 V AC AC-1 for power circuit

Complementary

Pole contact composition 4 NO
Protective cover With
[Ui] rated insulation voltage Power circuit: 1000 V conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Overvoltage category III
[Ith] conventional free air thermal current 125 A (at 60 °C) for power circuit
Irms rated making capacity 1100 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947
Associated fuse rating 200 A gG at <= 690 V coordination type 1 for power circuit,160 A gG at <= 690 V coordination type 2 for power circuit
Time constant 75 ms
Control circuit type DC wide range
Coil technology Without built-in suppressor module
Control circuit voltage limits 0.1...0.3 Uc (-40…70 °C):drop-out DC,0.7...1.25 Uc (-40…50 °C):operational DC,1...1.25 Uc (50…70 °C):operational DC
Average impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit
Power dissipation per pole 12.5 W AC-1
Operating time 95...130 ms closing,20...35 ms opening
Maximum operating rate 3600 cyc/h 60 °C
Inrush power in W 22 W (at 20 °C)
Hold-in power consumption in W 22 W at 20 °C
Connections - terminals Control circuit: lugs-ring terminals - external diameter: 8 mm,Power circuit: lugs-ring terminals - external diameter: 17 mm,Power circuit: bars 1 - busbar cross section: 3 x 16 mm
Tightening torque Control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5,Control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5,Power circuit: 5 N.m - on lugs-ring terminals hexagonal screw head 10 mm M6,Power circuit: 5 N.m - on lugs-ring terminals - with screwdriver flat Ø 8 mm M6,Power circuit: 5 N.m - on bars - with screwdriver flat Ø 8 mm M6,Power circuit: 5 N.m - on bars hexagonal screw head 10 mm M6
mounting support Plate,Rail
Electrical durability 0.8 Mcycles 125 A AC-1 at Ue <= 440 V
Mechanical durability 10 Mcycles
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1,B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Operating altitude 0...3000 m
compatibility code LC1D
Standards EN/IEC 60947-4-1,EN/IEC 60947-5-1,CSA C22.2 No 14,UL 60947-4-1,IEC 60335-1:Clause 30.2,IEC 60335-2-40:Annex JJ,UL 60335-2-40:Annex JJ
Product certifications CCC,UL,CB Scheme,CSA,CE,UKCA,Marine,EAC

Environment

Climatic withstand conforming to IACS E10
Ambient air temperature for storage -60…80 °C
Fire resistance 850 °C conforming to IEC 60695-2-1
Height 127 mm
Width 96 mm
Depth 181 mm
net weight 2.685 kg
Mechanical robustness Vibrations contactor open (2 Gn, 5...300 Hz) ,Vibrations contactor closed (3 Gn, 5...300 Hz) ,Shocks contactor open (8 Gn for 11 ms) ,Shocks contactor closed (10 Gn for 11 ms)

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.0 cm
Package 1 Width 16.0 cm
Package 1 Length 22.0 cm
Package 1 Weight 2.632 kg
Unit Type of Package 2 S02
Number of Units in Package 2 2
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 5.494 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
