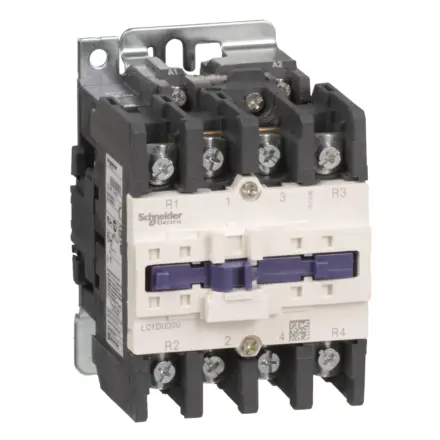

LC1D800086FWS207 Schneider Electric - Contactor, TeSys Deca S207, 4P(2NO+2NC), AC-1, <=440V, 125A, 110V DC wide range coil, ring-lug terminals

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£585.12 Exc. VAT
£702.14 Inc. VAT

Main

Range TeSys,TeSys Deca
range of product TeSys Deca
product or component type Contactor
Device short name LC1D
Contactor application Resistive load
Utilisation category AC-1
Poles description 4P
[Ue] rated operational voltage Power circuit: <= 1000 V AC 25...400 Hz
[Ie] rated operational current 125 A (at <60 °C) at <= 1000 V AC AC-1 for power circuit

Complementary

Pole contact composition 2 NO + 2 NC
Protective cover With
[Ui] rated insulation voltage Power circuit: 1000 V conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Overvoltage category III
[Ith] conventional free air thermal current 125 A (at 60 °C) for power circuit
Irms rated making capacity 1100 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947
Associated fuse rating 200 A gG at <= 690 V coordination type 1 for power circuit,160 A gG at <= 690 V coordination type 2 for power circuit
Time constant 75 ms
Control circuit type DC wide range
Coil technology Without built-in suppressor module
Control circuit voltage limits 0.1...0.3 Uc (-40…70 °C):drop-out DC,0.7...1.25 Uc (-40…50 °C):operational DC,1...1.25 Uc (50…70 °C):operational DC
Average impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit
Power dissipation per pole 12.5 W AC-1
Operating time 95...130 ms closing,20...35 ms opening
Maximum operating rate 3600 cyc/h 60 °C
Inrush power in W 22 W (at 20 °C)
Hold-in power consumption in W 22 W at 20 °C
Connections - terminals Control circuit: lugs-ring terminals - external diameter: 8 mm,Power circuit: lugs-ring terminals - external diameter: 17 mm,Power circuit: bars 1 - busbar cross section: 3 x 16 mm
Tightening torque Control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5,Control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5,Power circuit: 5 N.m - on lugs-ring terminals hexagonal screw head 10 mm M6,Power circuit: 5 N.m - on lugs-ring terminals - with screwdriver flat Ø 8 mm M6,Power circuit: 5 N.m - on bars - with screwdriver flat Ø 8 mm M6,Power circuit: 5 N.m - on bars hexagonal screw head 10 mm M6
mounting support Plate,Rail
Electrical durability 0.8 Mcycles 125 A AC-1 at Ue <= 440 V
Mechanical durability 10 Mcycles
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1,B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Operating altitude 0...3000 m
compatibility code LC1D
Standards EN/IEC 60947-4-1,EN/IEC 60947-5-1,CSA C22.2 No 14,UL 60947-4-1,IEC 60335-1:Clause 30.2,IEC 60335-2-40:Annex JJ,UL 60335-2-40:Annex JJ
Product certifications CCC,UL,CB Scheme,CSA,CE,UKCA,Marine,EAC

Environment

Climatic withstand conforming to IACS E10
Ambient air temperature for storage -60…80 °C
Fire resistance 850 °C conforming to IEC 60695-2-1
Height 127 mm
Width 96 mm
Depth 196 mm
net weight 2.91 kg
Mechanical robustness Vibrations contactor open (2 Gn, 5...300 Hz) ,Vibrations contactor closed (3 Gn, 5...300 Hz) ,Shocks contactor open (8 Gn for 11 ms) ,Shocks contactor closed (10 Gn for 11 ms)

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14.8 cm
Package 1 Width 13.1 cm
Package 1 Length 10.8 cm
Package 1 Weight 1.8 kg

Contractual warranty

Warranty 18 months
