Schneider Electric

LC1D806SWS207

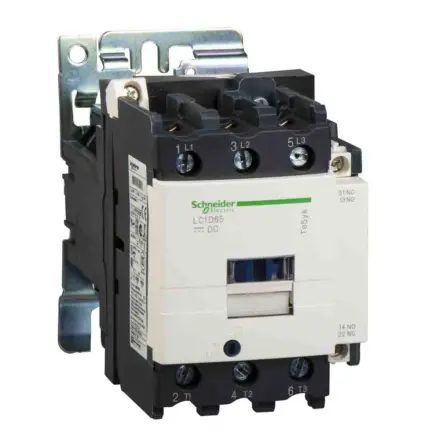

LC1D806SWS207 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LC1D806SWS207 Schneider Electric

LC1D806SWS207 Schneider Electric - TeSys D contactor S207 - 3P (3NO) AC-3 80A <=440V - coil 72V DC wide

Extended Description for LC1D806SWS207 Schneider Electric

LC1D806SWS207 Schneider Electric - TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 80A/690V AC-3/3e (45kW@440V).,It provides a 72V DC wide range coil, 1NO+1NC built-in auxiliary contacts, connection by bars/ ring-lugs screw terminals.,It procures high reliability and durability with 3600 cycles/hour operating rates under 60°C environment temperature.,The dimension is 127mm x 85mm x 186mm (H x W x D), mounting on rail or plate.,Multi standards certified (IEC, CCC, UKCA), Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£407.66 Exc. VAT
£489.19 Inc. VAT

Main

Range TeSys,TeSys Deca
range of product TeSys Deca
product or component type Contactor
Device short name LC1D
Contactor application Motor control,Resistive load
Utilisation category AC-3,AC-1,AC-3e
Poles description 3P
[Ue] rated operational voltage Power circuit: <= 1000 V AC 25...400 Hz
[Ie] rated operational current 125 A (at <60 °C) at <= 1000 V AC AC-1 for power circuit,80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit,80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit

Complementary

Motor power kW 22 kW at 220/230 V AC 50 Hz (AC-3),37 kW at 380/400 V AC 50 Hz (AC-3),45 kW at 415 V AC 50 Hz (AC-3),45 kW at 440 V AC 50 Hz (AC-3),55 kW at 500 V AC 50 Hz (AC-3),45 kW at 660/690 V AC 50 Hz (AC-3),45 kW at 1000 V AC 50 Hz (AC-3)
Pole contact composition 3 NO
Protective cover With
Auxiliary contacts type type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1, type mirror contact 1 NC conforming to IEC 60947-4-1
Auxiliary contact composition 1 NO + 1 NC
[Ui] rated insulation voltage Power circuit: 1000 V conforming to IEC 60947-4-1,Signalling circuit: 690 V conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Overvoltage category III
[Ith] conventional free air thermal current 125 A (at 60 °C) for power circuit,10 A (at 60 °C) for signalling circuit
Irms rated making capacity 1100 A at 440 V for power circuit conforming to IEC 60947,140 A AC for signalling circuit conforming to IEC 60947-5-1,250 A DC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947
Associated fuse rating 200 A gG at <= 690 V coordination type 1 for power circuit,160 A gG at <= 690 V coordination type 2 for power circuit,10 A gG for signalling circuit conforming to IEC 60947-5-1
Time constant 75 ms
Control circuit type DC wide range
Coil technology Without built-in suppressor module
Control circuit voltage limits 0.1...0.3 Uc (-40…70 °C):drop-out DC,0.7...1.25 Uc (-40…50 °C):operational DC,1...1.25 Uc (50…70 °C):operational DC
Average impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit
Power dissipation per pole 12.5 W AC-1,5.1 W AC-3,6.5 W AC-3e
Minimum switching current 5 mA for signalling circuit
Minimum switching voltage 17 V for signalling circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contact,1.5 ms on energisation between NC and NO contact
Operating time 95...130 ms closing,20...35 ms opening
Maximum operating rate 3600 cyc/h 60 °C
Inrush power in W 22 W (at 20 °C)
Hold-in power consumption in W 22 W at 20 °C
Insulation resistance > 10 MOhm for signalling circuit
Connections - terminals Control circuit: lugs-ring terminals - external diameter: 8 mm,Power circuit: lugs-ring terminals - external diameter: 17 mm,Power circuit: bars 1 - busbar cross section: 3 x 16 mm
Tightening torque Control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5,Control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5,Power circuit: 5 N.m - on lugs-ring terminals hexagonal screw head 10 mm M6,Power circuit: 5 N.m - on lugs-ring terminals - with screwdriver flat Ø 8 mm M6,Power circuit: 5 N.m - on bars - with screwdriver flat Ø 8 mm M6,Power circuit: 5 N.m - on bars hexagonal screw head 10 mm M6,Power circuit: 2.5 N.m - on lugs-ring terminals - with screwdriver pozidriv No 2 M4,Control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver pozidriv No 2 M3.5
mounting support Plate,Rail
Electrical durability 1.5 Mcycles 80 A AC-3 at Ue <= 440 V,0.8 Mcycles 125 A AC-1 at Ue <= 440 V,1 Mcycles 66 A AC-3e at Ue <= 440 V
Mechanical durability 10 Mcycles
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1,B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Operating altitude 0...3000 m
compatibility code LC1D
Standards EN/IEC 60947-4-1,EN/IEC 60947-5-1,CSA C22.2 No 14,UL 60947-4-1,IEC 60335-1:Clause 30.2,IEC 60335-2-40:Annex JJ,UL 60335-2-40:Annex JJ
Product certifications CCC,UL,CB Scheme,CSA,CE,UKCA,Marine,EAC

Environment

Climatic withstand conforming to IACS E10
Ambient air temperature for storage -60…80 °C
Fire resistance 850 °C conforming to IEC 60695-2-1
Height 127 mm
Width 85 mm
Depth 186 mm
net weight 2.59 kg
Mechanical robustness Vibrations contactor open (2 Gn, 5...300 Hz) ,Shocks contactor closed (15 Gn for 11 ms) ,Vibrations contactor closed (3 Gn, 5...300 Hz) ,Shocks contactor open (8 Gn for 11 ms)

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 10.700 cm
Package 1 Width 16.200 cm
Package 1 Length 21.700 cm
Package 1 Weight 2.511 kg
Unit Type of Package 2 S02
Number of Units in Package 2 2
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.320 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
