Schneider Electric

LC1D80G6

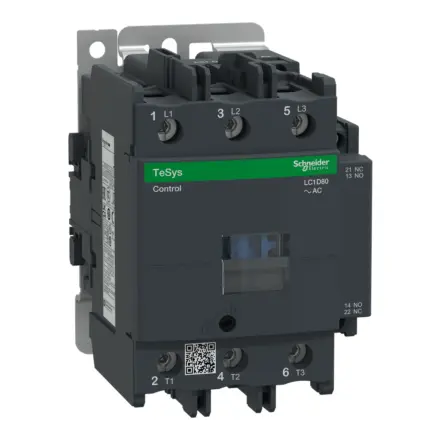

LC1D80G6 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LC1D80G6 Schneider Electric

LC1D80G6 Schneider Electric - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 120 V AC 60 Hz coil

Extended Description for LC1D80G6 Schneider Electric

LC1D80G6 Schneider Electric - TeSys Deca contactors have been designed for perfect integration into control systems.,They can be used to create motor starters for almost any type of application.,TeSys Deca contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps.,This 80A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel.,Contactors have both Horsepower and Kw motor rating for international acceptance.,Contactor is rated for 25HP at 200 to 208VAC, 30HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase.,Contactor is also rated for 7.5HP at 115VAC and 15HP at 240VAC single phase.,When used with a 480VAC up to 150A circuit breaker, this contactor can have a SCCR up to 100kA.,When used with up to a 600VAC 175A Class J or CC fuse, this contactor can have a SCCR up to 100kA.,Contactor is supplied with a 120 VAC 60 Hz coil.,Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified.,Screw clamp terminals are used for load and auxiliary connections.,An extensive line of accessories makes it easy to meet the requirements of most applications.,The contactor is 5.00 inches tall, 3.35 inches wide and 5.12 inches deep. It weighs 3.51 lbs.,Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£161.16 Exc. VAT
£193.39 Inc. VAT

Main

Range TeSys
range of product TeSys Deca
product or component type Contactor
Device short name LC1D
Contactor application Motor control,Resistive load
Utilisation category AC-3,AC-3e,AC-4,AC-1
Poles description 3P
[Ue] rated operational voltage Power circuit: <= 300 V DC 25...400 Hz,Power circuit: <= 690 V AC
[Ie] rated operational current 125 A (at <60 °C) at <= 1000 V AC AC-1 for power circuit,80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit,80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
[Uc] control circuit voltage 120 V AC 60 Hz

Complementary

Motor power kW 22 kW at 220...230 V AC 50/60 Hz (AC-3),37 kW at 380...400 V AC 50/60 Hz (AC-3),45 kW at 415...440 V AC 50/60 Hz (AC-3),55 kW at 500 V AC 50/60 Hz (AC-3),45 kW at 660...690 V AC 50/60 Hz (AC-3),15 kW at 400 V AC 50/60 Hz (AC-4),22 kW at 220...230 V AC 50/60 Hz (AC-3e),37 kW at 380...400 V AC 50/60 Hz (AC-3e),45 kW at 415...440 V AC 50/60 Hz (AC-3e),55 kW at 500 V AC 50/60 Hz (AC-3e),45 kW at 660...690 V AC 50/60 Hz (AC-3e)
Motor power hp 7.5 hp at 120 V AC 50/60 Hz for 1 phase motors,15 hp at 230/240 V AC 50/60 Hz for 1 phase motors,30 hp at 200/208 V AC 50/60 Hz for 3 phases motors,30 hp at 230/240 V AC 50/60 Hz for 3 phases motors,60 hp at 460/480 V AC 50/60 Hz for 3 phases motors,60 hp at 575/600 V AC 50/60 Hz for 3 phases motors
compatibility code LC1D
Pole contact composition 3 NO
Protective cover With
[Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit,125 A (at 60 °C) for power circuit
Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1,250 A DC for signalling circuit conforming to IEC 60947-5-1,1100 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 640 A 40 °C - 10 s for power circuit,990 A 40 °C - 1 s for power circuit,135 A 40 °C - 10 min for power circuit,320 A 40 °C - 1 min for power circuit,100 A - 1 s for signalling circuit,120 A - 500 ms for signalling circuit,140 A - 100 ms for signalling circuit
Associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1,200 A gG at <= 690 V coordination type 1 for power circuit,160 A gG at <= 690 V coordination type 2 for power circuit
Average impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit
Power dissipation per pole 5.1 W AC-3,12.5 W AC-1,5.1 W AC-3e
[Ui] rated insulation voltage Power circuit: 600 V CSA certified,Power circuit: 600 V UL certified,Power circuit: 1000 V conforming to IEC 60947-4-1,Signalling circuit: 690 V conforming to IEC 60947-1,Signalling circuit: 600 V CSA certified,Signalling circuit: 600 V UL certified
Overvoltage category III
Pollution degree 3
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1,B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Mechanical durability 10 Mcycles
Electrical durability 0.8 Mcycles 125 A AC-1 at Ue <= 440 V,1.5 Mcycles 80 A AC-3 at Ue <= 440 V,1.5 Mcycles 80 A AC-3e at Ue <= 440 V
Control circuit type AC at 60 Hz
Coil technology Without built-in suppressor module
Control circuit voltage limits 0.85...1.1 Uc (-40…55 °C):operational AC 60 Hz,0.3...0.6 Uc (-40…70 °C):drop-out AC 60 Hz,1...1.1 Uc (55…70 °C):operational AC 60 Hz
Inrush power in VA 220 VA 60 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA 22 VA 60 Hz cos phi 0.3 (at 20 °C)
Heat dissipation 6…10 W at 60 Hz
Operating time 20...35 ms closing,6...20 ms opening
Maximum operating rate 3600 cyc/h 60 °C
Maximum operating rate 3600 cyc/h at 60 °C
Connections - terminals Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end,Power circuit: connector 1 4…50 mm² - cable stiffness: flexible without cable end,Power circuit: connector 2 4…25 mm² - cable stiffness: flexible without cable end,Power circuit: connector 1 4…50 mm² - cable stiffness: flexible with cable end,Power circuit: connector 2 4…16 mm² - cable stiffness: flexible with cable end,Power circuit: connector 1 4…50 mm² - cable stiffness: solid without cable end,Power circuit: connector 2 4…25 mm² - cable stiffness: solid without cable end
Tightening torque Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm,Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2,Power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm,Power circuit: 12 N.m - on connector hexagonal screw head 4 mm,Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Auxiliary contact composition 1 NO + 1 NC
Auxiliary contacts type type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1, type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency 25...400 Hz
Minimum switching voltage 17 V for signalling circuit
Minimum switching current 5 mA for signalling circuit
Insulation resistance > 10 MOhm for signalling circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contact,1.5 ms on energisation between NC and NO contact
mounting support Rail,Plate

Environment

Standards EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,IEC 60947-5-1,CSA C22.2 No 14,UL 60947-4-1,IEC 60335-2-40:Annex JJ,UL 60335-2-40:Annex JJ,IEC 60335-1:Clause 30.2
Product certifications CCC,UL,CB Scheme,CSA,CE,UKCA,Marine,EAC
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Climatic withstand conforming to IACS E10 exposure to damp heat
Permissible ambient air temperature around the device -40…60 °C,60…70 °C with derating
Operating altitude 0...3000 m
Fire resistance 850 °C conforming to IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations contactor open (2 Gn, 5...300 Hz) ,Shocks contactor open (8 Gn for 11 ms) ,Vibrations contactor closed (3 Gn, 5...300 Hz) ,Shocks contactor closed (10 Gn for 11 ms)
Height 127 mm
Width 85 mm
Depth 130 mm
net weight 1.59 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 13.500 cm
Package 1 Width 10.500 cm
Package 1 Length 13.500 cm
Package 1 Weight 1.540 kg
Unit Type of Package 2 S03
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 12.740 kg
Unit Type of Package 3 P06
Number of Units in Package 3 64
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 109.920 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
