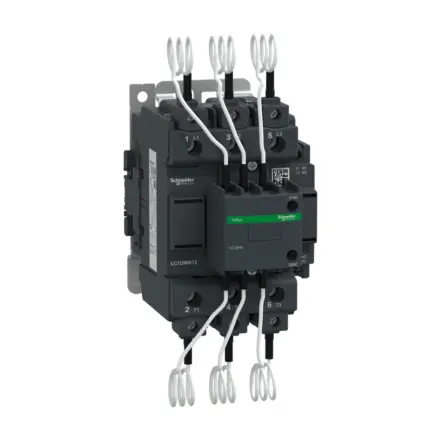

LC1DWK12V7 Schneider Electric - Capacitor contactor, TeSys D, 63 kVAR at 400 V/50 Hz, coil 400 V AC 50/60 Hz

Extended Description for LC1DWK12V7 Schneider Electric

LC1DWK12V7 Schneider Electric - TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 63kVAR@400V 50Hz (104kVAR@690V).,It provides a 400V 50/60 Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation.,For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability.,Compact (85mm width), DIN-rail mounting or screw fixing.,Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£184.30 Exc. VAT
£221.16 Inc. VAT

Main

Range TeSys
Product name TeSys LC1D.K,TeSys Deca
product or component type Capacitor duty contactor
Device short name LC1DWK
device application Control
Contactor application Power factor correction
Utilisation category AC-6b
Poles description 3P
power pole contact composition 3 NO
Device location in system Line interruption,Inside delta interruption
[Ue] rated operational voltage Power circuit: 690 V AC 50/60 Hz
Reactive power rating 35 kvar at 230 V AC 50 Hz 60 °C,63 kvar at 400 V AC 50 Hz 60 °C,67 kvar at 440 V AC 50 Hz 60 °C,104 kvar at 690 V AC 50 Hz 60 °C,30 kvar at 230 V AC 60 Hz 60 °C,60 kvar at 460 V AC 60 Hz 60 °C,80 kvar at 575 V AC 60 Hz 60 °C
Control circuit type AC at 50/60 Hz
[Uc] control circuit voltage 400 V AC 50/60 Hz
Auxiliary contact composition 1 NO + 2 NC instantaneous
Electrical durability 300000 cycles at Ue 400 V,200000 cycles at Ue 690 V
mounting support DIN rail,Plate
Standards EN/IEC 60947-1,EN/IEC 60947-4-1,UL 60947-4-1,CSA C22.2 No 60947-4-1
Product certifications IECEE CB Scheme,UL,CSA,UKCA
Connections - terminals Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end,Power circuit: connector 1 4…50 mm² - cable stiffness: solid,Power circuit: connector 2 4…25 mm² - cable stiffness: solid,Power circuit: connector 1 4…50 mm² - cable stiffness: flexible without cable end,Power circuit: connector 2 4…25 mm² - cable stiffness: flexible without cable end,Power circuit: connector 1 4…50 mm² - cable stiffness: flexible with cable end,Power circuit: connector 2 4…16 mm² - cable stiffness: flexible with cable end
Tightening torque Power circuit: 9 N.m - on connector,Control circuit: 1.7 N.m - on screw clamp terminals
Maximum operating rate 240 cyc/h

Complementary

Auxiliary contacts type type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1

Environment

IP degree of protection IP20 front face conforming to IEC 60529
Ambient air temperature for operation -5…60 °C
Ambient air temperature for storage -60…80 °C
Operating altitude 0...3000 m
Height 180 mm
Width 85 mm
Depth 154 mm
net weight 1.65 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 21.000 cm
Package 1 Width 11.500 cm
Package 1 Length 12.000 cm
Package 1 Weight 1.440 kg
Unit Type of Package 2 S03
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.937 kg

Contractual warranty

Warranty 18 months
