LC1F2100P7

LC1F2100P7 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LC1F2100P7 Schneider Electric

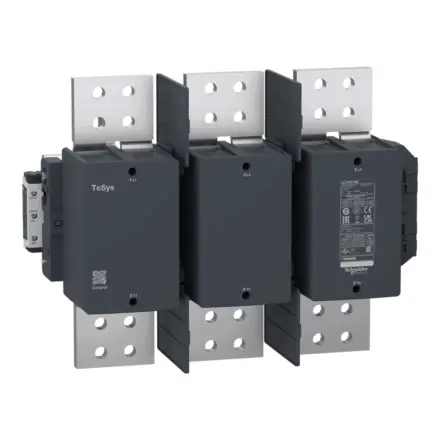

LC1F2100P7 Schneider Electric - TeSys F contactor - 3P (3 NO) - AC-1 - <= 440 V 2100 A - coil 230 V AC

Extended Description for LC1F2100P7 Schneider Electric

LC1F2100P7 Schneider Electric - TeSys F contactor, 3 poles (3NO), 2100A/1000V AC-1, for non-inductive load applications.,It provides a low sealed consumption 230V 40-400Hz AC coil, bolt terminals for bars or cables with lugs.,For high operating rates until 600 cycles/hour and environments until 55°C, it procures high reliability and durability.,It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately).,Multi standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£6,150.98 Exc. VAT
£7,381.17 Inc. VAT

Main

Range TeSys
range of product TeSys F
product or component type Contactor
Device short name LC1F
Contactor application Resistive load
Utilisation category AC-1
Poles description 3P
[Ue] rated operational voltage <= 1000 V AC 50/60 Hz,<= 460 V DC
[Uc] control circuit voltage 230 V AC 40...400 Hz
[Ie] rated operational current 2100 A (at <40 °C) AC AC-1

Complementary

[Uimp] rated impulse withstand voltage 8 kV
[Ith] conventional free air thermal current 2100 A (at 40 °C)
Rated breaking capacity 3150 A conforming to IEC 60947-4-1
[Icw] rated short-time withstand current 10000 A 40 °C - 10 s,7500 A 40 °C - 30 s,5500 A 40 °C - 1 min,4200 A 40 °C - 3 min,3000 A 40 °C - 10 min
Associated fuse rating 2000 A gG at <= 440 V
Average impedance 0.1 mOhm - Ith 2100 A 50 Hz
[Ui] rated insulation voltage 1000 V conforming to IEC 60947-4-1,1500 V conforming to VDE 0110 group C,1000 V conforming to UL 60947-4-1
Power dissipation per pole 200 W AC-1
Overvoltage category III
power pole contact composition 3 NO
Control circuit voltage limits Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C),Drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C)
Inrush power in VA 2200 VA, 40...400 Hz cos phi 0.9 (at 20 °C)
Hold-in power consumption in VA 36 VA, 40...400 Hz cos phi 0.9 (at 20 °C)
Maximum operating rate 600 cyc/h 55 °C
Operating time 100...170 ms opening,40...75 ms closing
Connections - terminals Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end,Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end,Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end,Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end,Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end,Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end,Power circuit: bar 4 cable(s) - busbar cross section: 100 x 5 mm,Power circuit: bolted connection
Tightening torque Control circuit: 1.2 N.m,Power circuit: 58 N.m
mounting support Plate
Heat dissipation 36 W
Standards EN 60947-1,JIS C8201-4-1,EN 60947-4-1,IEC 60947-4-1,IEC 60947-1,UL 60947-4-1,CSA C22.2 No 60947-4-1
Product certifications UL,CSA,CCC,CB Scheme,EAC,UKCA
compatibility code LC1F
Control circuit type AC at 40...400 Hz

Environment

Protective treatment TH
Ambient air temperature for operation -5…40 °C
Ambient air temperature for storage -60…80 °C
Permissible ambient air temperature around the device -40…60 °C
Height 332 mm
Width 438 mm
Depth 238.6 mm
Operating altitude 3000 m without derating
net weight 31 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 38 cm
Package 1 Width 48 cm
Package 1 Length 60 cm
Package 1 Weight 40 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
