LC1F400X7

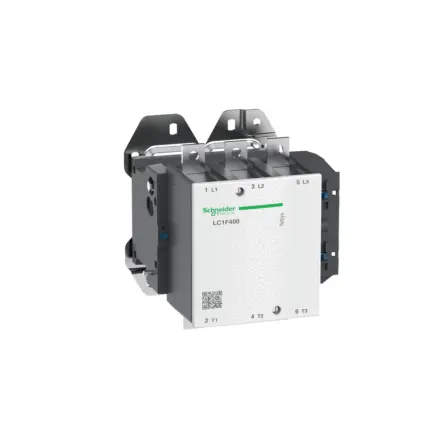

LC1F400X7 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LC1F400X7 Schneider Electric

LC1F400X7 Schneider Electric - TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 400 A - coil 550...600 V AC

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£730.84 Exc. VAT
£877.01 Inc. VAT

Main

Range TeSys
range of product TeSys F
product or component type Contactor
Device short name LC1F
Contactor application Resistive load,Motor control
Utilisation category AC-3,AC-4,AC-1
Poles description 3P
[Ue] rated operational voltage <= 1000 V AC 50/60 Hz,<= 460 V DC
[Uc] control circuit voltage 550...600 V AC 40...400 Hz
[Ie] rated operational current 500 A (at <40 °C) at <= 440 V AC AC-1,400 A (at <55 °C) at <= 440 V AC AC-3

Complementary

[Uimp] rated impulse withstand voltage 8 kV
[Ith] conventional free air thermal current 500 A (at 40 °C)
Rated breaking capacity 3200 A conforming to IEC 60947-4-1
[Icw] rated short-time withstand current 3600 A 40 °C - 10 s,2400 A 40 °C - 30 s,1700 A 40 °C - 1 min,1200 A 40 °C - 3 min,1000 A 40 °C - 10 min
Associated fuse rating 400 A aM at <= 440 V,500 A gG at <= 440 V
Average impedance 0.26 mOhm - Ith 500 A 50 Hz
[Ui] rated insulation voltage 1000 V conforming to IEC 60947-4-1,1500 V conforming to VDE 0110 group C
Power dissipation per pole 65 W AC-1,42 W AC-3
Overvoltage category III
power pole contact composition 3 NO
Motor power kW 75 kW at 400 V AC 50/60 Hz (AC-4),200 kW at 380...400 V AC 50/60 Hz (AC-3),220 kW at 415 V AC 50/60 Hz (AC-3),250 kW at 440 V AC 50/60 Hz (AC-3),257 kW at 500 V AC 50/60 Hz (AC-3),280 kW at 660...690 V AC 50/60 Hz (AC-3),185 kW at 1000 V AC 50/60 Hz (AC-3),110 kW at 220...230 V AC 50/60 Hz (AC-3)
Control circuit voltage limits Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C),Drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C)
Mechanical durability 10 Mcycles
Inrush power in VA 1075 VA, 40...400 Hz cos phi 0.9 (at 20 °C)
Hold-in power consumption in VA 15 VA, 40...400 Hz cos phi 0.9 (at 20 °C)
Maximum operating rate 2400 cyc/h 55 °C
Operating time 40...65 ms closing,100...170 ms opening
Connections - terminals Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end,Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end,Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end,Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end,Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end,Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end,Power circuit: bar 2 cable(s) - busbar cross section: 30 x 5 mm,Power circuit: lugs-ring terminals 2 cable(s) 150 mm²,Power circuit: bolted connection
Tightening torque Control circuit: 1.2 N.m,Power circuit: 35 N.m
mounting support Plate
Heat dissipation 14 W
Standards EN 60947-1,IEC 60947-4-1,JIS C8201-4-1,EN 60947-4-1,IEC 60947-1
Product certifications CCC,BV,RINA,ABS,DNV,RMRoS,UL,LROS (Lloyds register of shipping),CB,UKCA
compatibility code LC1F
Control circuit type AC at 40...400 Hz

Environment

IP degree of protection IP20 front face with shrouds conforming to IEC 60529,IP20 front face with shrouds conforming to VDE 0106
Protective treatment TH
Ambient air temperature for operation -5…55 °C
Ambient air temperature for storage -60…80 °C
Permissible ambient air temperature around the device -40…70 °C
Height 206 mm
Width 213 mm
Depth 219 mm
Operating altitude 3000 m without derating
net weight 9.1 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 24.892 cm
Package 1 Width 25.146 cm
Package 1 Length 29.972 cm
Package 1 Weight 9.226 kg

Contractual warranty

Warranty 18 months
