LC1K06016BLS207

LC1K06016BLS207 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LC1K06016BLS207 Schneider Electric

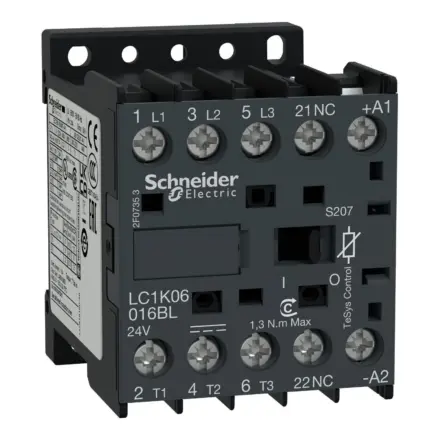

LC1K06016BLS207 Schneider Electric - TeSys K contactor - 3P - AC-3 <= 440 V 6 A - 1 NC aux. - 24 V DC low

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£26.71 Exc. VAT
£32.05 Inc. VAT

Main

Range TeSys
product or component type Contactor
Device short name LC1K
device application Control
Contactor application Motor control

Complementary

Utilisation category AC-3,AC-3e,AC-4
Poles description 3P
power pole contact composition 3 NO
[Ue] rated operational voltage Power circuit: <= 690 V AC <= 400 Hz,Signalling circuit: <= 690 V AC <= 400 Hz
[Ie] rated operational current 6 A (at <60 °C) at <= 440 V AC AC-3 for power circuit,6 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Control circuit type DC low consumption
[Uc] control circuit voltage 24 V DC
Motor power kW 1.5 kW at 220...230 V AC 50/60 Hz AC-3,2.2 kW at 380...415 V AC 50/60 Hz AC-3,3 kW at 440/690 V AC 50/60 Hz AC-3,1.5 kW at 220...230 V AC 50/60 Hz AC-3e,2.2 kW at 380...415 V AC 50/60 Hz AC-3e,3 kW at 440/690 V AC 50/60 Hz AC-3e,1.5 kW at 220...230 V AC 50/60 Hz AC-4,2.2 kW at 380...415 V AC 50/60 Hz AC-4,3 kW at 440/690 V AC 50/60 Hz AC-4
Auxiliary contact composition 1 NC
[Uimp] rated impulse withstand voltage 8 kV
Overvoltage category III
[Ith] conventional free air thermal current 20 A (at 60 °C) for power circuit,10 A (at 50 °C) for signalling circuit
Irms rated making capacity 110 A AC for power circuit conforming to IEC 60947,110 A AC for signalling circuit conforming to IEC 60947
Rated breaking capacity 110 A at 220...230 V conforming to IEC 60947,110 A at 380...400 V conforming to IEC 60947,110 A at 415 V conforming to IEC 60947,110 A at 440 V conforming to IEC 60947,80 A at 500 V conforming to IEC 60947,70 A at 660...690 V conforming to IEC 60947
[Icw] rated short-time withstand current 90 A 50 °C - 1 s for power circuit,85 A 50 °C - 5 s for power circuit,80 A 50 °C - 10 s for power circuit,60 A 50 °C - 30 s for power circuit,45 A 50 °C - 1 min for power circuit,40 A 50 °C - 3 min for power circuit,20 A 50 °C - >= 15 min for power circuit,80 A - 1 s for signalling circuit,90 A - 500 ms for signalling circuit,110 A - 100 ms for signalling circuit
Associated fuse rating 25 A gG at <= 440 V for power circuit,10 A gG for signalling circuit conforming to IEC 60947,10 A gG for signalling circuit conforming to VDE 0660
Average impedance 3 mOhm - Ith 20 A 50 Hz for power circuit
[Ui] rated insulation voltage Power circuit: 690 V conforming to IEC 60947-4-1,Signalling circuit: 690 V conforming to IEC 60947-4-1,Signalling circuit: 690 V conforming to IEC 60947-5-1,Power circuit: 750 V conforming to VDE 0110 group C,Power circuit: 690 V conforming to BS 5424,Power circuit: 690 V conforming to NF C 20-040
safety cover With
Insulation resistance > 10 MOhm for signalling circuit
Inrush power in W 1.8 W (at 20 °C)
Hold-in power consumption in W 1.8 W at 20 °C
Heat dissipation 1.8 W
Control circuit voltage limits Operational: 0.7...1.3 Uc (at <50 °C),Drop-out: >= 0.10 Uc (at <50 °C)
Connections - terminals Power circuit: lugs-ring terminals (external diameter: 7 mm)
Maximum operating rate 3600 cyc/h
Coil technology With integral suppression device
Auxiliary contacts type type instantaneous 1 NC
Signalling circuit frequency <= 400 Hz
Minimum switching current 5 mA for signalling circuit
Minimum switching voltage 17 V for signalling circuit
mounting support Rail,Plate
Tightening torque Power circuit: 0.8…1.3 N.m - on lugs-ring terminals - with screwdriver 3.2 mm flat Ø 6 mm,Power circuit: 0.8…1.3 N.m - on lugs-ring terminals - with screwdriver 3.2 mm Philips No 2,Power circuit: 0.8…1.3 N.m - on lugs-ring terminals pozidriv No 2
Operating time 10...20 ms coil de-energisation and NO opening,30...40 ms coil energisation and NO closing
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1,B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Non overlap distance 0.5 mm
Mechanical durability 30 Mcycles
Electrical durability 1.3 Mcycles 6 A AC-3 at Ue <= 440 V
Mechanical robustness Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27,Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27,Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27,Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27,Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27,Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27,Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6,Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Height 58 mm
Width 45 mm
Depth 57 mm
net weight 0.235 kg

Environment

Standards EN/IEC 60947-4-1,GB/T 14048.4,UL 60947-4-1,CSA C22.2 No 60947-4-1,JIS C8201-4-1
Product certifications CB Scheme,CCC,UL,CSA,EAC,CE,UKCA
IP degree of protection IP20 conforming to VDE 0106
Protective treatment TC conforming to IEC 60068,TC conforming to DIN 50016
Ambient air temperature for storage -50…80 °C
Permissible ambient air temperature around the device -40…70 °C at Uc
Operating altitude 2000 m without derating
Flame retardance V0 conforming to UL 94

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.7 cm
Package 1 Width 4.8 cm
Package 1 Length 6.2 cm
Package 1 Weight 240.0 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
